2L Series Fluid Control Valve
Powerful Flow Management – 2L Series Fluid Control Valve

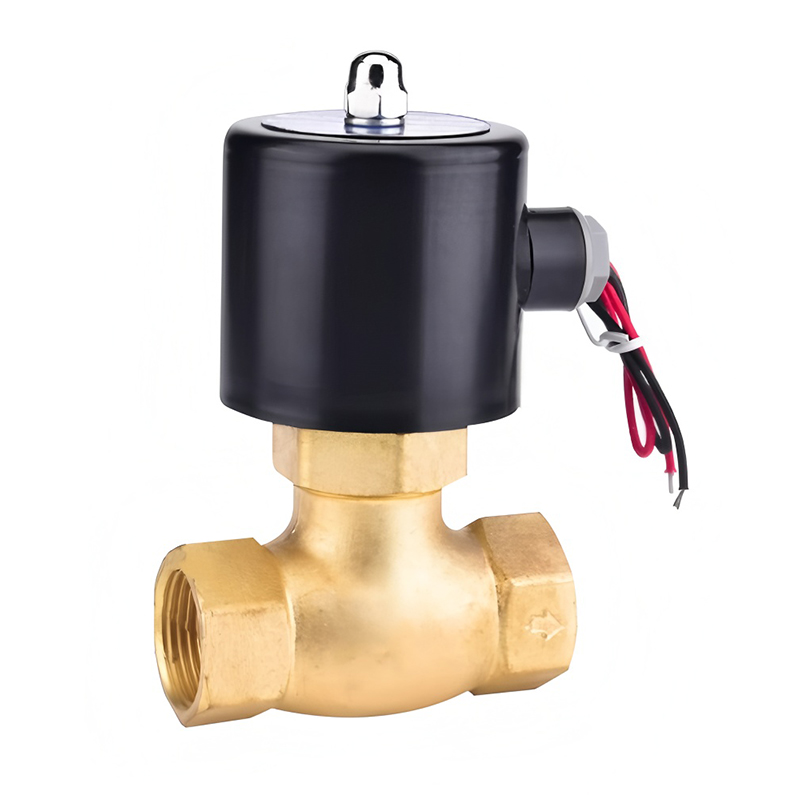

The CG Pneumatic 2L Series Fluid Control Valve is a pilot-piston operated solenoid valve engineered for high-flow and high-pressure fluid control. Featuring a brass body and durable internal components, it provides stable performance in systems handling water, air, oil, and other neutral media.
This normally closed 2/2 way valve is ideal for applications requiring large bore connections and minimal actuation effort. Its internal piston structure allows it to open at lower coil power while managing higher operating pressures—making it an excellent choice for automated irrigation, HVAC, water supply lines, and industrial machinery.
Whether you’re dealing with large pipe diameters or high-pressure systems, the 2L Series is your go-to valve for consistent, leak-free performance.

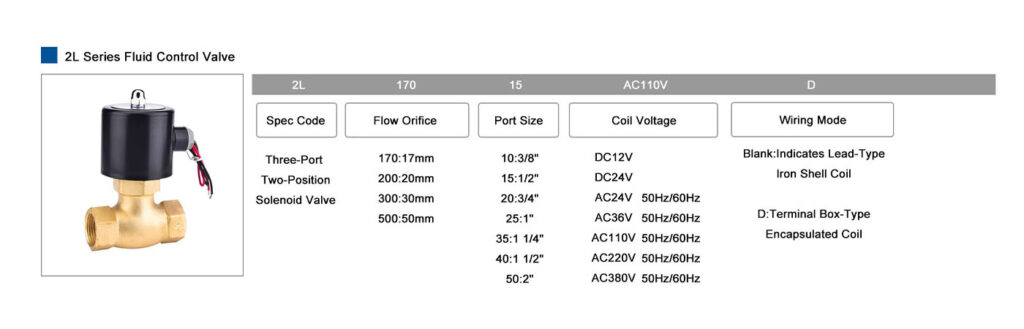

| Parameter | Specification |
|---|---|
| Product Name | 2L Series Fluid Control Valve |
| Valve Type | 2/2 Way, Normally Closed |
| Structure | Pilot-piston type |
| Body Material | Brass |
| Port Size | G1/2″ ~ G2″ |
| Coil Voltage Options | DC24V / AC220V / AC110V / DC12V |
| Operating Pressure | 0.2 – 1.6 MPa (varies by model) |
| Applicable Media | Water, air, oil, neutral fluids |
| Seal Material | NBR / EPDM / Viton (optional) |
| Operating Temperature | -5°C ~ 85°C |
| Connection Type | Female threaded (BSP or NPT) |
| Applications | High-pressure pipelines, irrigation systems, fluid tanks |
| Key Features | High flow, low coil power, smooth opening, long life |
