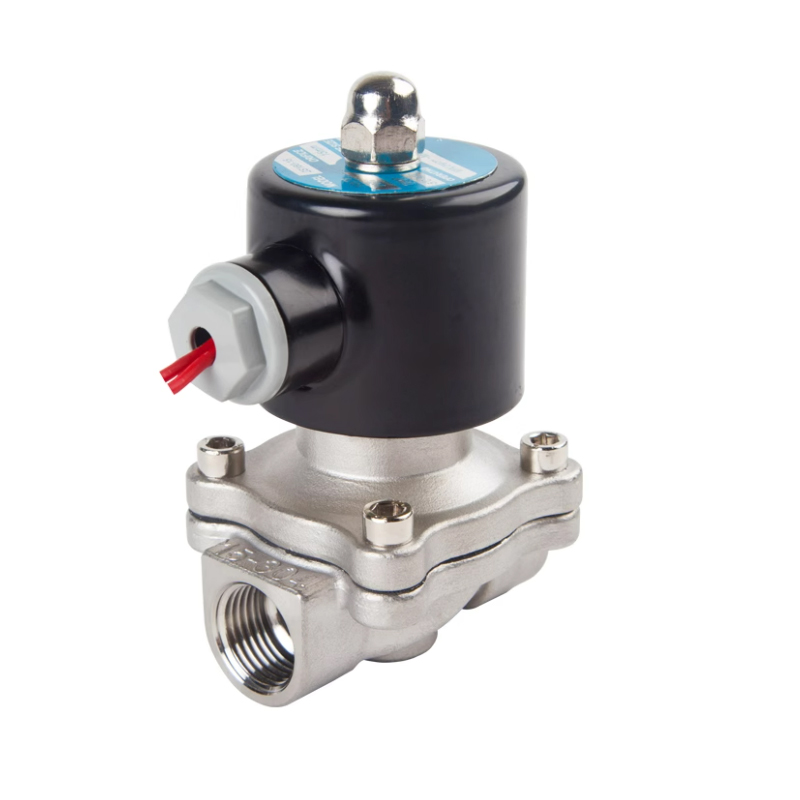

2S Series Fluid Control Valve
Corrosion-Resistant Flow Control – 2S Series Fluid Control Valve
The 2S Series Fluid Control Valve is a pilot-operated solenoid valve designed for reliable on/off control of air, water, oil, and weakly corrosive fluids. Its stainless steel body ensures enhanced durability and chemical resistance, making it ideal for demanding industrial environments.
This normally closed valve operates efficiently under medium pressure conditions and delivers excellent sealing with low actuation energy. The 2S Series is frequently used in food-grade pipelines, chemical processing lines, cooling systems, and general-purpose liquid control.
With fast response and wide media compatibility, the 2S Series provides cost-effective, maintenance-friendly performance in both OEM and retrofit fluid systems.
| Parameter | Specification |
|---|---|
| Product Name | 2S Series Fluid Control Valve |
| Valve Type | 2/2 Way, Normally Closed |
| Body Material | Stainless Steel 304 |
| Port Size | G1/8″ to G1-1/2″ |
| Structure | Pilot-operated diaphragm type |
| Coil Voltage Options | DC24V / AC220V / DC12V / AC110V |
| Operating Pressure | 0.1 – 0.8 MPa |
| Applicable Media | Water, air, light oil, weak acid/alkali fluids |
| Seal Material | NBR / EPDM / Viton (optional) |
| Operating Temperature | -5°C ~ 80°C |
| Connection Type | Female threaded (BSP or NPT) |
| Applications | Food processing, chemical dosing, fluid lines |
| Key Features | Anti-corrosion body, tight sealing, long cycle life |
