2W Series Fluid Control Valve
Versatile Flow Control – 2W Series Fluid Control Valve

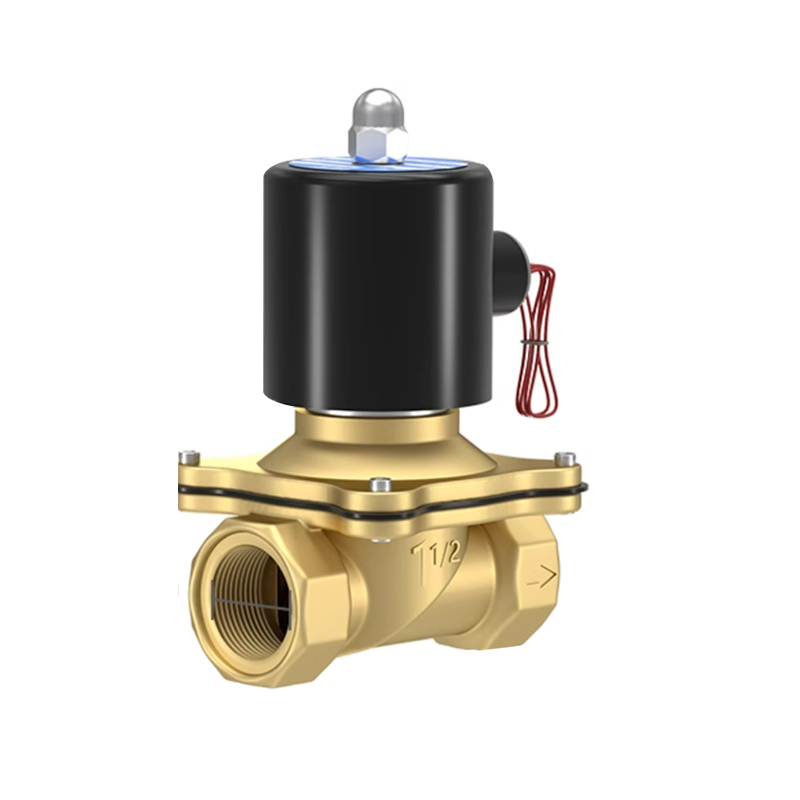

The CG Pneumatic 2W Series Fluid Control Valve is a 2-way, normally closed electric solenoid valve designed for efficient automation of water, air, oil, and other non-corrosive media. With a brass valve body and high-performance coil, it offers excellent durability, fast response, and stable sealing performance.
Available in port sizes from 1/8″ to 2″, the 2W Series supports a wide range of pressures and voltages, making it ideal for HVAC systems, irrigation, water treatment, and industrial automation. It features a diaphragm or piston structure (depending on size) for consistent flow control and extended service life.
Easy to install and maintain, this valve is a popular choice for both OEMs and system integrators looking for high-value, low-maintenance fluid control solutions.

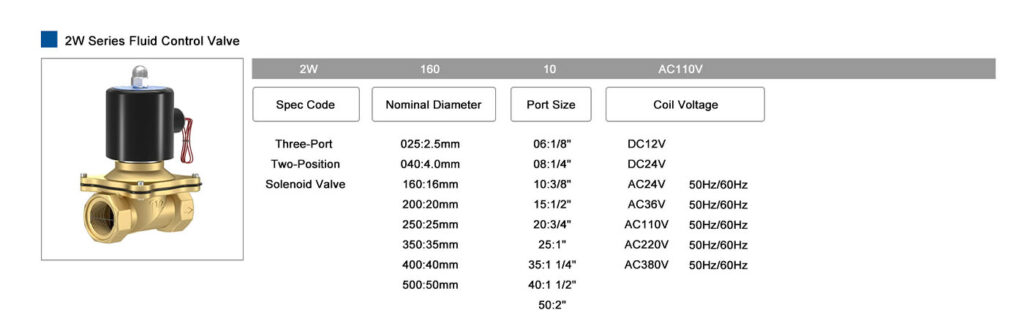

| Parameter | Specification |
|---|---|
| Product Name | 2W Series Fluid Control Valve |
| Valve Type | 2/2 Way, Normally Closed |
| Body Material | Brass |
| Port Size | G1/8″ ~ G2″ |
| Operating Pressure | 0 ~ 1.0 MPa (varies by model) |
| Applicable Media | Water, Air, Light Oil, Neutral Gas |
| Coil Voltage Options | DC12V / DC24V / AC110V / AC220V |
| Power Consumption | 10–25W depending on size |
| Operating Temperature | -5°C ~ 80°C |
| Seal Material | NBR / EPDM / Viton (optional) |
| Connection Type | Threaded (BSP or NPT) |
| Features | Quick response, high flow, easy maintenance |
| Applications | Irrigation, automation, fluid handling, HVAC |
