3R/4R Series Manual valve
Simple Push-Button Control – 3R/4R Series Manual Valve

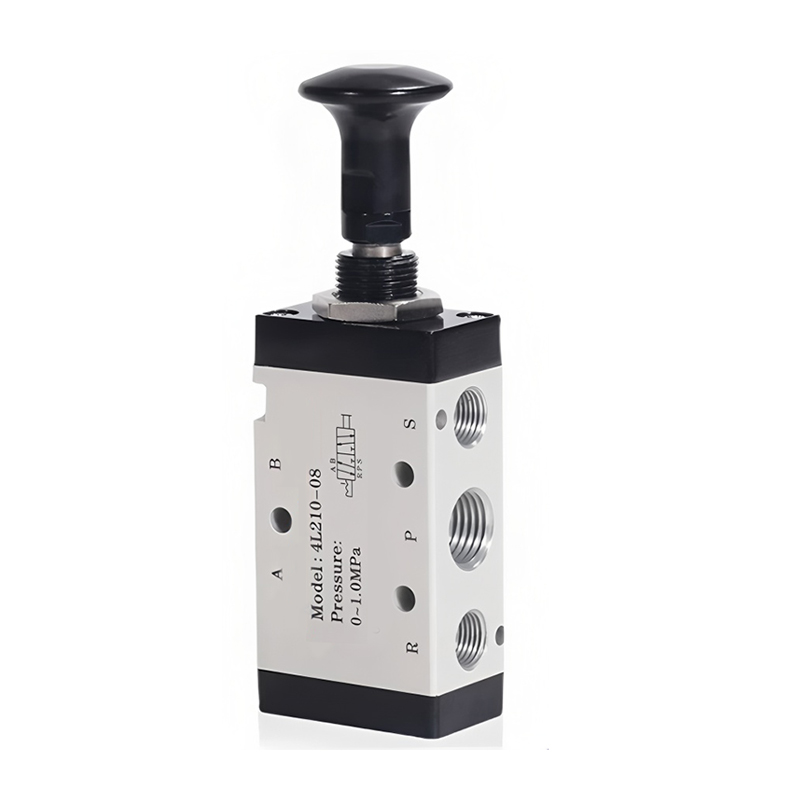

The CG Pneumatic 3R/4R Series Manual Valve offers a compact and dependable solution for manually controlling airflow in pneumatic systems. Designed with a vertical push-button actuator, these valves come in 3/2 way (3R) and 5/2 way (4R) configurations, making them perfect for single and double-acting cylinders.
The valve body is made from corrosion-resistant aluminum alloy with precision-machined ports for leak-free connections. Its ergonomic push button allows for fast and accurate switching in environments where electrical control is not feasible or desirable.
Commonly used in maintenance stations, test benches, and manual machinery, the 3R/4R Series brings durability and control right to your fingertips.
| Parameter | Specification |
|---|---|

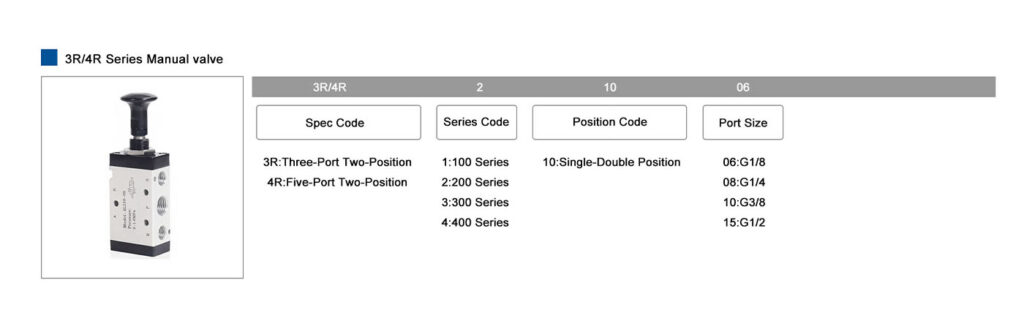

| Series Model | 3R / 4R Series |
| Valve Type | 3/2 Way (3R), 5/2 Way (4R) |
| Control Method | Manual push button |
| Operating Pressure | 0 – 1.0 MPa |
| Port Size | G1/8″, G1/4″ (e.g., 08 thread) |
| Body Material | Aluminum alloy |
| Temperature Range | -10°C ~ 60°C |
| Installation Type | Panel mount or inline |
| Actuation Type | Spring return with manual push |
| Applicable Medium | Filtered compressed air |
| Application Scope | Manual workstations, pneumatic fixture control |
| Feature Highlight | No power required, vertical design saves space |
