3V/4V Series Manifold
Smart Pneumatic Distribution – 3V/4V Series Manifold Base

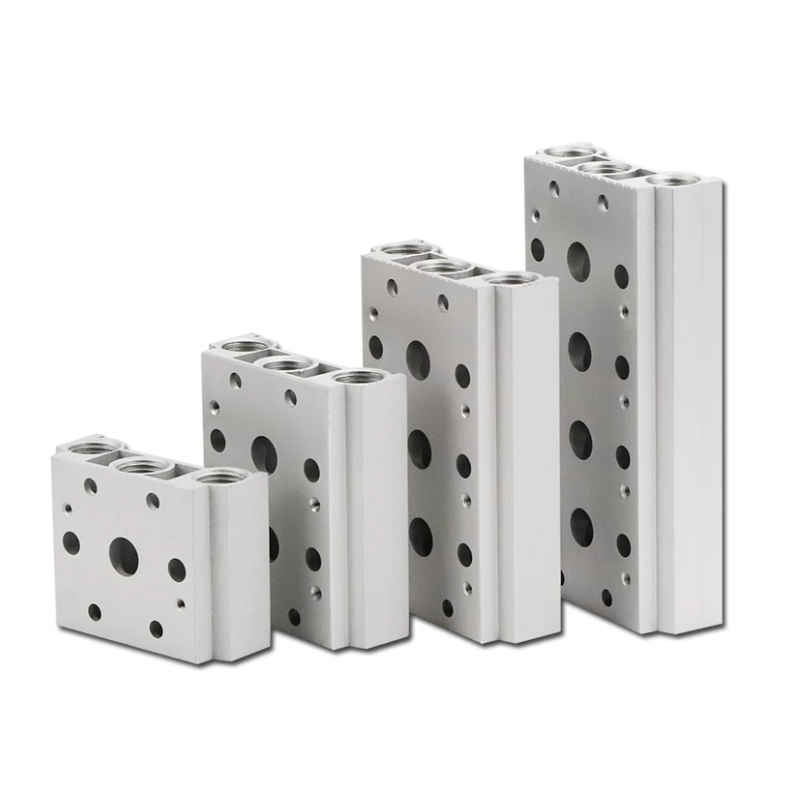

The CG Pneumatic 3V/4V Series Manifold is designed to simplify valve installation and streamline air circuit management in industrial automation systems. This high-quality aluminum base enables mounting of multiple 3V or 4V solenoid valves in a compact, organized layout—reducing tubing, saving space, and improving maintenance access.
Each manifold block is precisely machined for leak-free air distribution and consistent pressure across all connected valves. With standard thread ports and customizable positions (2, 4, 6, 8, 10 stations), the 3V/4V manifold is ideal for use in control panels, machine tools, and modular pneumatic islands.
Choose the right manifold configuration to match your system layout, reduce setup time, and increase overall efficiency.

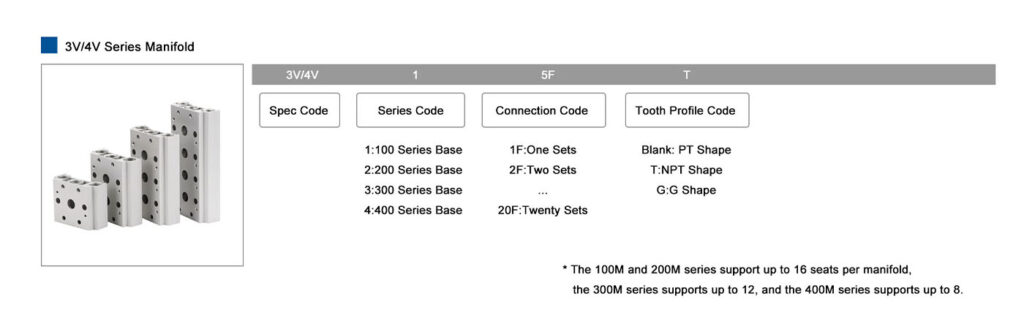

| Parameter | Specification |
|---|---|
| Product Name | 3V/4V Series Manifold Base |
| Compatible Valve Series | 3V210 / 4V210 / 3V220 / 4V220 |
| Material | High-strength aluminum alloy |
| Number of Stations | 2 / 4 / 6 / 8 / 10 ports (customizable) |
| Port Threads | G1/8″, G1/4″, or PT options |
| Operating Pressure | 0 – 1.0 MPa |
| Installation Type | Panel mount or direct screw-mount |
| Surface Treatment | Anodized finish for corrosion resistance |
| Applications | Valve grouping, automation panels, manifold blocks |
| Key Features | Compact layout, time-saving assembly, leak-free design |
