3V Series Solenoid Valve
Versatile and Durable – 3V Series Pneumatic Solenoid Valve
The CG Pneumatic 3V Series Solenoid Valve is a 5/2 way, 2-position valve designed for controlling double-acting pneumatic actuators with precision and reliability. Built with a rugged aluminum body, it ensures high flow rates and long-lasting durability under heavy-duty conditions.
This series features a high-efficiency solenoid coil with IP65 protection, making it suitable for demanding industrial automation environments. With fast response, wide voltage compatibility, and easy installation, the 3V Series valve is a trusted choice for packaging lines, conveyors, and factory equipment.
| Parameter | Specification |
|---|---|

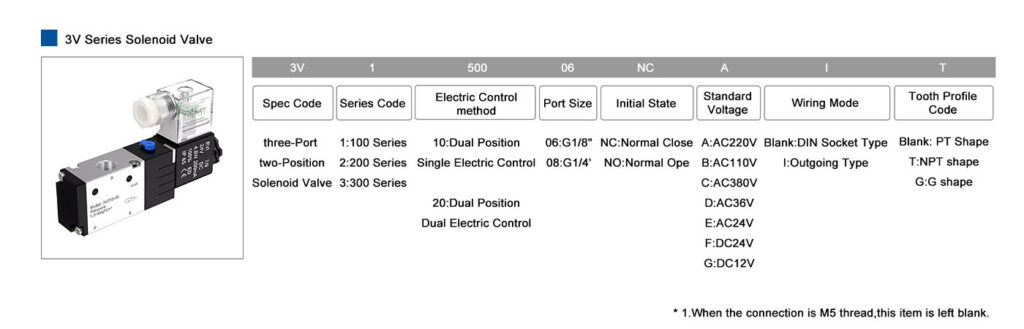

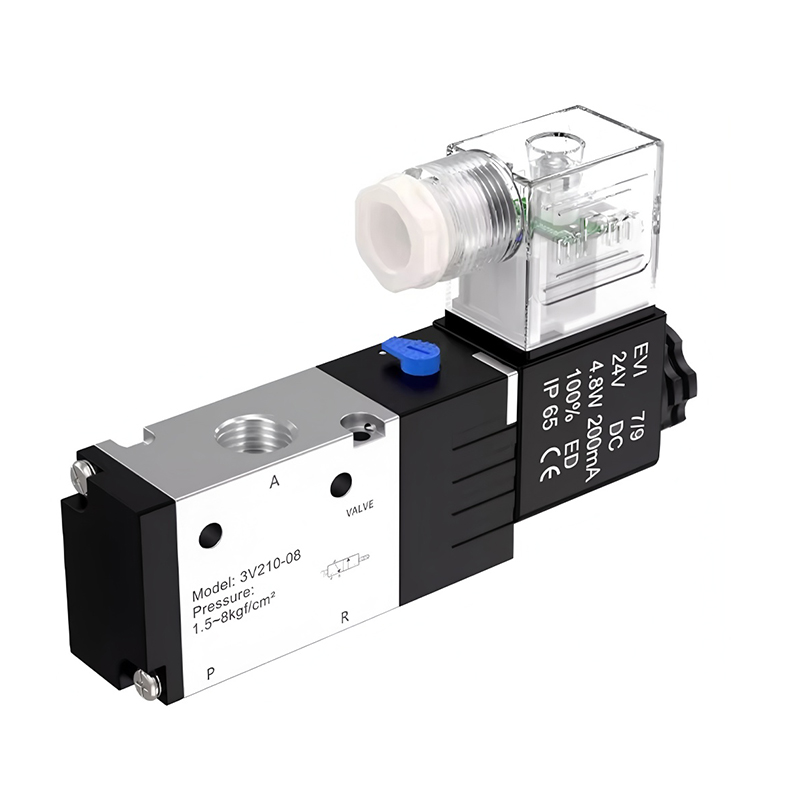

| Model | 3V210-08 (3V Series) |
| Valve Type | 5/2 Way, 2-Position |
| Coil Voltage | DC24V (Other options available) |
| Power Consumption | 4.8W / 200mA |
| Voltage Range | DC21.6V ~ 26.4V |
| Duty Cycle | 100%ED (Continuous Operation) |
| Protection Class | IP65 |
| Certification | CE |
| Body Material | Aluminum alloy |
| Port Size | G1/4″ (08) |
| Operating Pressure | 1.5 – 8 kgf/cm² |
| Applicable Medium | Filtered air |
| Mounting Type | Base or body mount |
| Special Feature | Manual override switch included |
| Applications | Cylinder control, industrial automation |
