3V1 Series Solenoid Valve

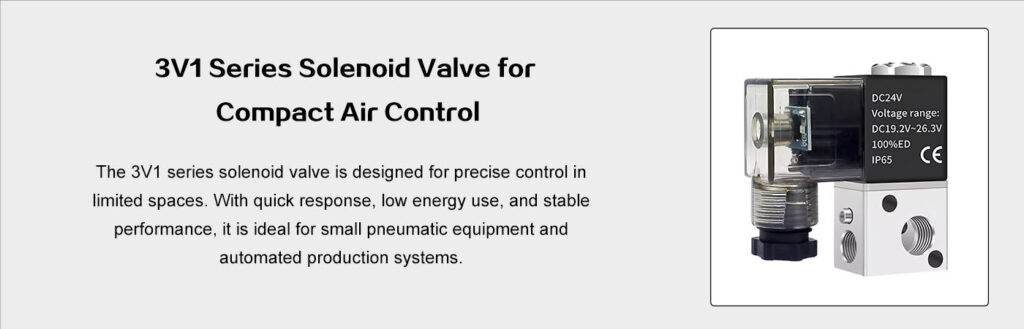

Precise Control in Tight Spaces – 3V1 Series Solenoid Valve

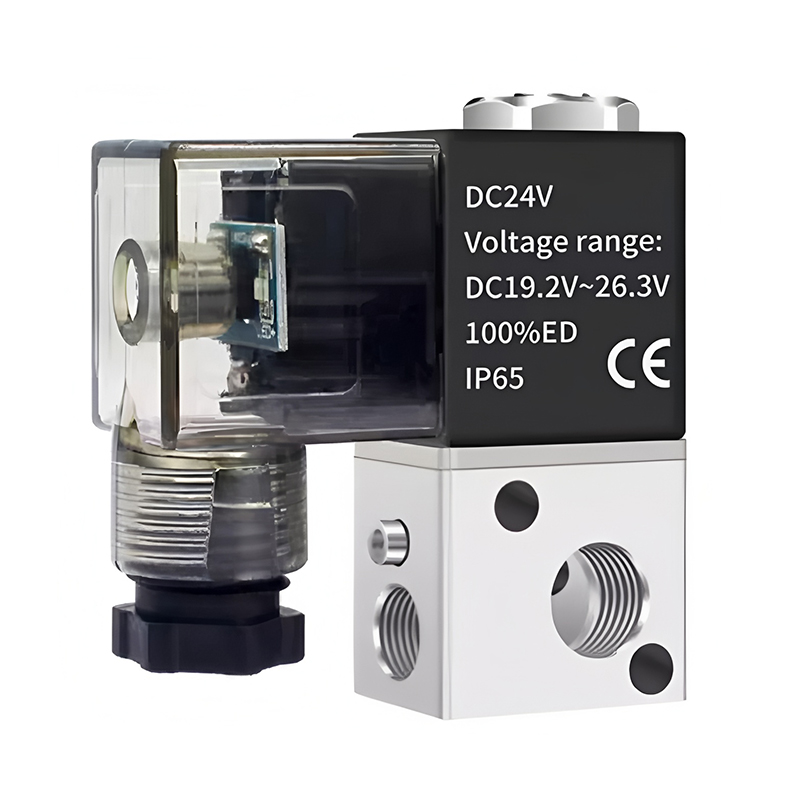

The CG Pneumatic 3V1 Series Solenoid Valve is engineered for compact and efficient control of airflow in small pneumatic systems. This 3-way, 2-position valve is ideal for applications requiring fast response and reliable operation in limited space environments. With a robust aluminum body, IP65 protection, and CE compliance, it is suitable for use in industrial automation, medical equipment, textile machines, and more.
Designed for long service life and minimal energy consumption, the 3V1 Series offers stable performance even under variable voltage conditions. It supports direct installation with standard port connections and is available in a variety of voltage ranges.
| Parameter | Specification |
|---|---|
| Model | 3V1 Series Solenoid Valve |
| Valve Type | 3-Way, 2-Position |
| Coil Voltage | DC24V (Other voltages optional) |
| Voltage Range | DC19.2V ~ 26.3V |
| Power Consumption | Approx. 4.8W |
| Duty Cycle | 100%ED (Continuous Duty) |
| Protection Class | IP65 |
| Certification | CE |
| Body Material | Aluminum alloy |
| Port Size | G1/8″, G1/4″ (optional) |
| Operating Pressure | 0.15 – 0.8 MPa |
| Applicable Medium | Filtered air, neutral gas |
| Mounting Type | Threaded, panel mount |
| Application Areas | Automation systems, packaging, textile |
