4HV Series Hand Switching Valve
Reliable Manual Control – 4HV Series Hand Switching Valve

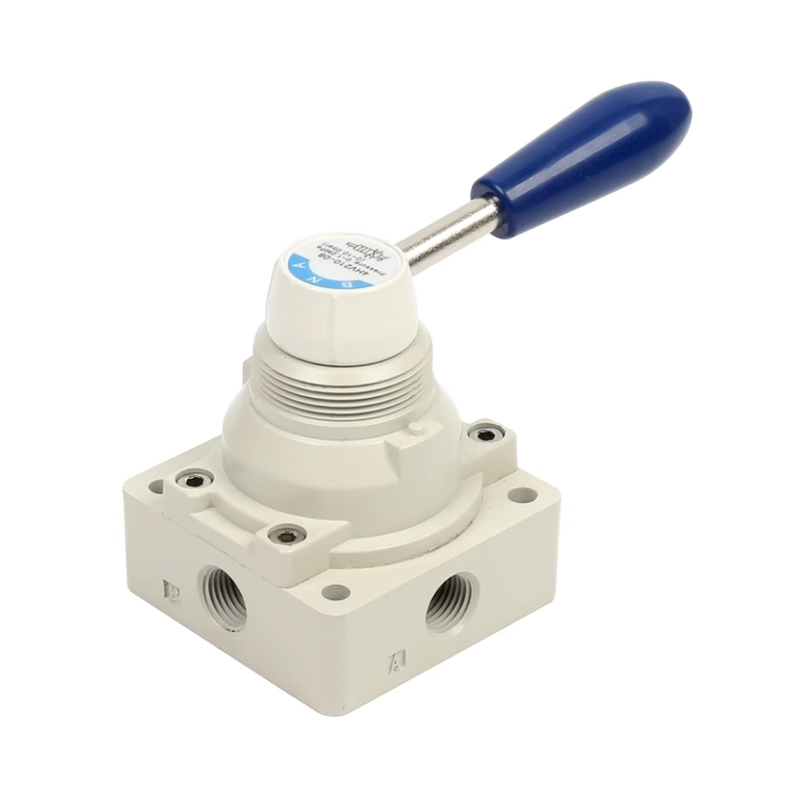

The CG Pneumatic 4HV Series Hand Switching Valve offers precise and safe manual control for pneumatic systems. Designed with a rotary lever actuator, this valve provides smooth switching between positions with clear directional indication. Ideal for machinery where manual override or non-electric control is required.
The 4HV valve features a robust plastic body with threaded ports and mounting holes for quick and secure installation. It supports 3/2 and 4/2 configurations, making it suitable for controlling cylinder direction, isolating air circuits, or emergency stop applications.
With high flow capacity, minimal resistance, and intuitive operation, the 4HV Series is a dependable solution for operator-controlled pneumatic flow management.

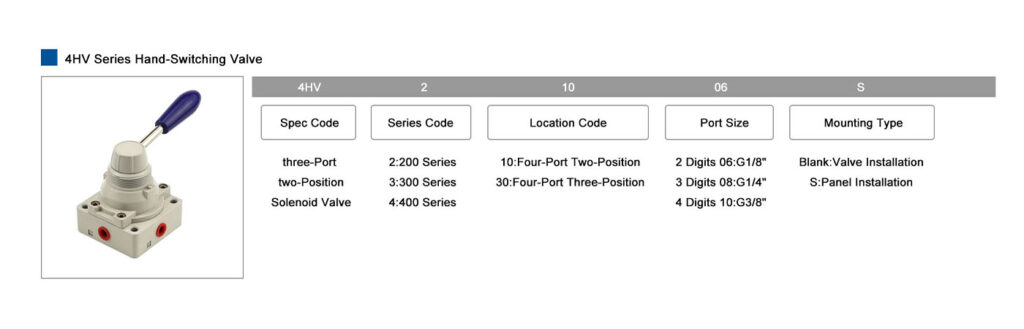

| Parameter | Specification |
|---|---|
| Product Name | 4HV Series Hand Switching Valve |
| Valve Type | 3/2 Way or 4/2 Way (Manual Rotary Type) |
| Actuation Method | Manual lever rotation |
| Port Size | G1/8″, G1/4″, G3/8″, G1/2″ |
| Body Material | Reinforced engineering plastic |
| Operating Pressure | 0 – 0.8 MPa |
| Operating Temperature | 0°C ~ 60°C |
| Flow Direction | Reversible with detent positions |
| Installation Type | Surface or panel mount |
| Application Scope | Air supply switching, cylinder control, E-stop |
| Key Features | Lockable, durable, no electricity required |
