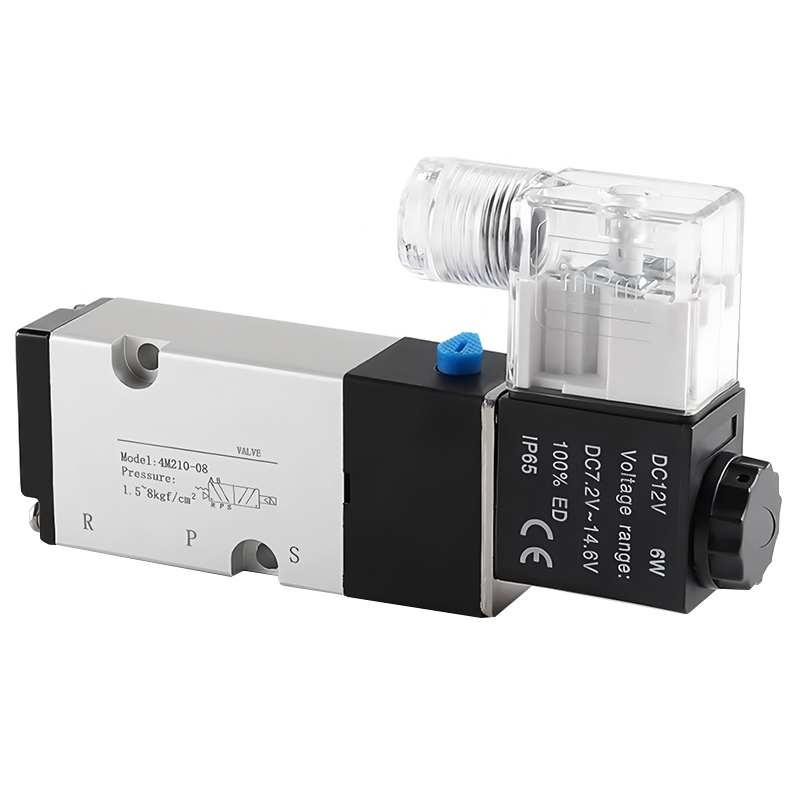

4M Series Solenoid Valve
Compact Power for Pneumatics – 4M Series Solenoid Valve
The CG Pneumatic 4M Series Solenoid Valve is a 5/2 way directional control valve specifically designed for space-constrained automation systems. With its slim and compact body, it’s perfect for applications where installation space is limited but performance must not be compromised.
Featuring a robust aluminum alloy construction, high-efficiency solenoid coil, and IP65-rated protection, the 4M Series delivers fast response, low power consumption, and long-lasting reliability. This series is widely used in pick-and-place units, small pneumatic actuators, and modular automation systems.
Whether you’re building compact machines or upgrading existing lines, the 4M Series offers flexibility, precision, and robust performance in a smaller form factor.
| Parameter | Specification |
|---|---|
| Model | 4M210-08 (4M Series) |
| Valve Type | 5/2 Way, 2-Position |
| Coil Voltage | DC12V (Other voltages available) |
| Voltage Range | DC7.2V ~ 14.6V |
| Power Consumption | 6W |
| Duty Cycle | 100%ED (Continuous Operation) |
| Protection Class | IP65 |
| Certification | CE |
| Body Material | Aluminum alloy |
| Port Size | G1/4″ (08) |
| Operating Pressure | 1.5 – 8 kgf/cm² |
| Applicable Medium | Filtered compressed air |
| Manual Override | Yes |
| Application Areas | Compact automation, pneumatic tooling, robotics |
Want to explore more CG pneumatic valve products?Click here: Pneumatic Valve to learn more.
