4V Series Solenoid Valve
Engineered for Precision – 4V Series Solenoid Valve

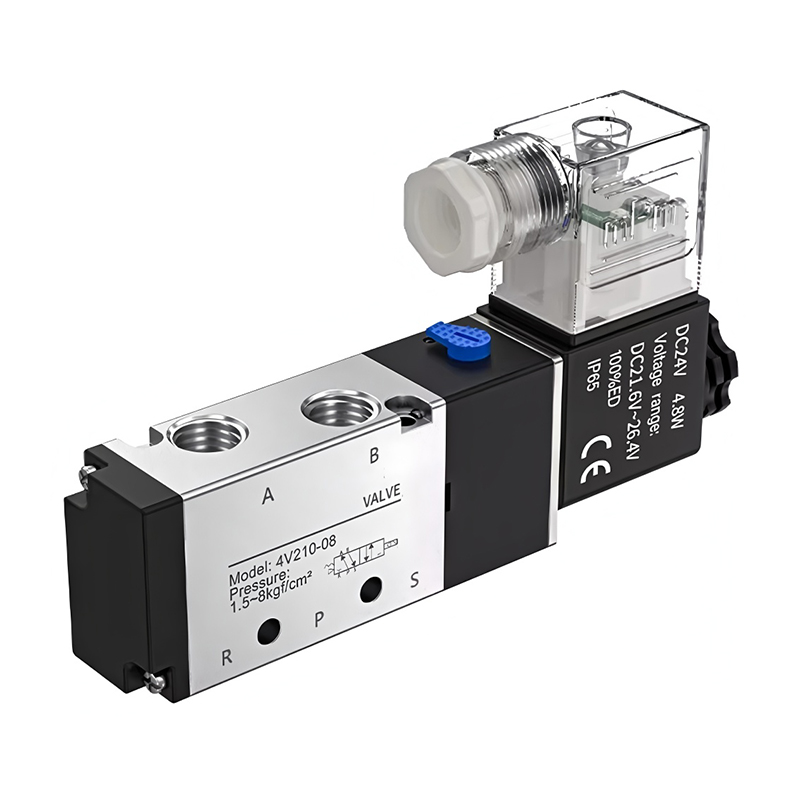

The CG Pneumatic 4V Series Solenoid Valve is a 5/2 way directional control valve engineered to deliver high flow and fast switching for advanced pneumatic systems. With its robust aluminum body and efficient direct-acting solenoid coil, the 4V Series ensures stable and responsive control of double-acting cylinders in automation lines, assembly systems, and industrial robotics.
Equipped with CE certification, IP65-rated protection, and manual override functionality, this valve is built for long-lasting reliability in tough operating environments. Available in various port sizes and voltage specifications, the 4V Series is an ideal upgrade for precision pneumatic applications requiring flexibility and durability.
| Parameter | Specification |
|---|---|
| Model | 4V210-08 (4V Series) |
| Valve Type | 5/2 Way, 2-Position |
| Coil Voltage | DC24V (Other options customizable) |
| Voltage Range | DC21.6V ~ 26.4V |
| Power Consumption | 4.8W |
| Duty Cycle | 100%ED (Continuous Operation) |
| Protection Class | IP65 |
| Certification | CE |
| Body Material | Aluminum alloy |
| Port Size | G1/4″ (08) |
| Operating Pressure | 1.5 – 8 kgf/cm² |
| Applicable Medium | Filtered air |
| Response Time | ≤20ms |
| Manual Override | Yes |
| Applications | Pneumatic actuators, robotics, conveyors |
