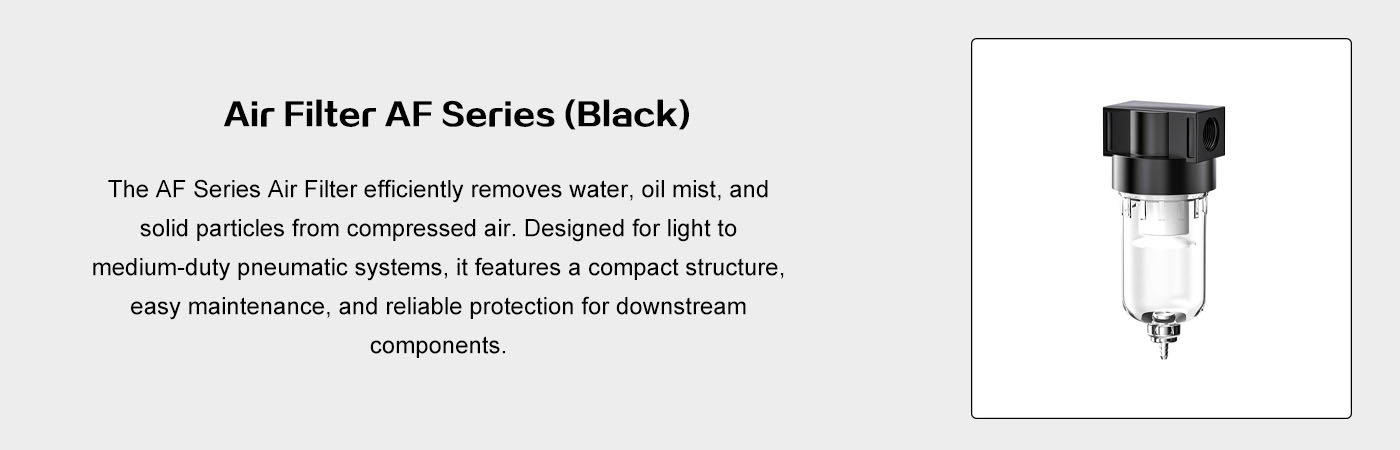

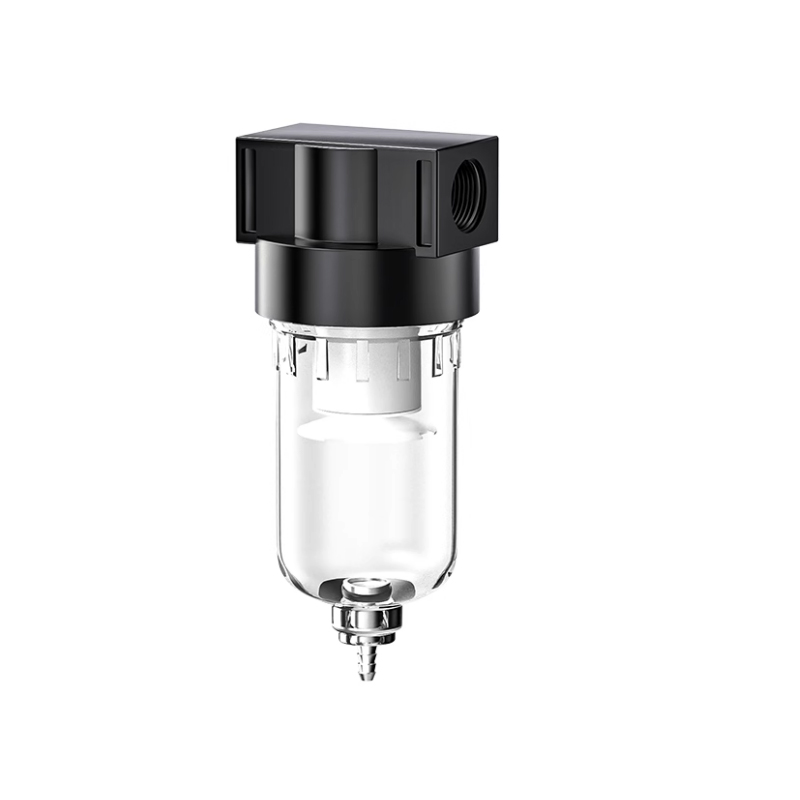

Air Filter AF Series Black
About Air Filter AF Series Black
The Air Filter AF Series Black from CG Pneumatic is a high-efficiency air purification unit designed to remove water, oil mist, and solid particles from compressed air. Featuring a matte black finish, this model combines modern industrial aesthetics with reliable performance.
Ideal for protecting downstream pneumatic components, the AF Series ensures clean, dry air that extends equipment life and enhances performance. Its compact form makes it easy to install in space-limited systems, and transparent bowls allow for quick visual inspection.
Key features:
- Moisture and particulate filtration for compressed air
- Matte black body for modern industrial environments
- Transparent polycarbonate bowl (optional cover)
- Manual or semi-auto drain options
- Compatible with AW and AL units for full FRL integration
| Specification | Details |
|---|---|
| Model Series | AF1500 / AF2000 |
| Color Option | Black / Gold / White |
| Port Sizes | 1/8″, 1/4″ |
| Operating Pressure | 0.05 – 0.85 MPa |
| Maximum Pressure | 1.5 MPa (215 psi) |
| Operating Temperature | 5 – 60°C (41 – 140°F) |
| Filtration Accuracy | 40 µm standard (optional 5 µm) |
| Drain Type | Semi-automatic / Automatic (optional) |
| Bowl Material | Polycarbonate (cover optional) |
| Mounting | Bracket or direct body mounting |
