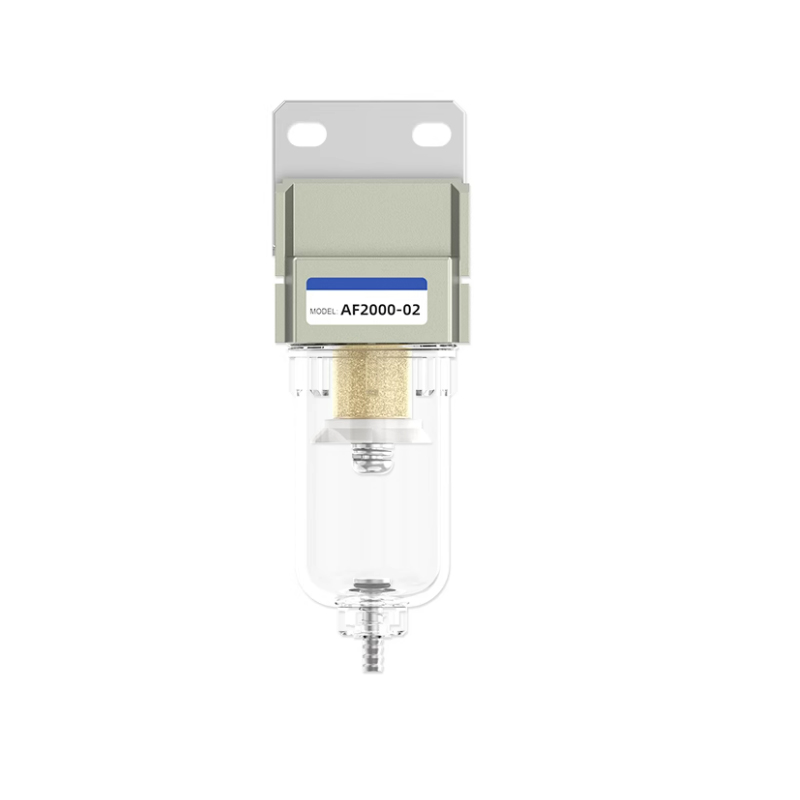

Air Filter AF Series Gold
About Air Filter AF Series Gold
The Air Filter AF Series Gold by CG Pneumatic is a precision-engineered air treatment unit that removes moisture and impurities from compressed air systems. Finished in anodized gold, it offers both reliable filtration and a premium look, making it ideal for modern industrial applications that value both form and function.
Its compact design ensures easy integration into tight pneumatic setups, while the transparent polycarbonate bowl allows for quick monitoring of condensate levels. Combine with AW and AL units for a complete FRL solution.
Key features:
- Efficient moisture and particulate filtration
- Premium gold body for modern industrial aesthetics
- Transparent bowl for easy maintenance
- Manual or semi-automatic drain options
- Suitable for automation, manufacturing, and clean areas
| Specification | Details |
|---|---|
| Model Series | AF1500 / AF2000 |
| Color Option | Black / Gold / White |
| Port Sizes | 1/8″, 1/4″ |
| Operating Pressure | 0.05 – 0.85 MPa |
| Maximum Pressure | 1.5 MPa (215 psi) |
| Operating Temperature | 5 – 60°C (41 – 140°F) |
| Filtration Accuracy | 40 µm standard (optional 5 µm) |
| Drain Type | Semi-automatic / Automatic (optional) |
| Bowl Material | Polycarbonate (cover optional) |
| Mounting | Bracket or direct body mounting |
