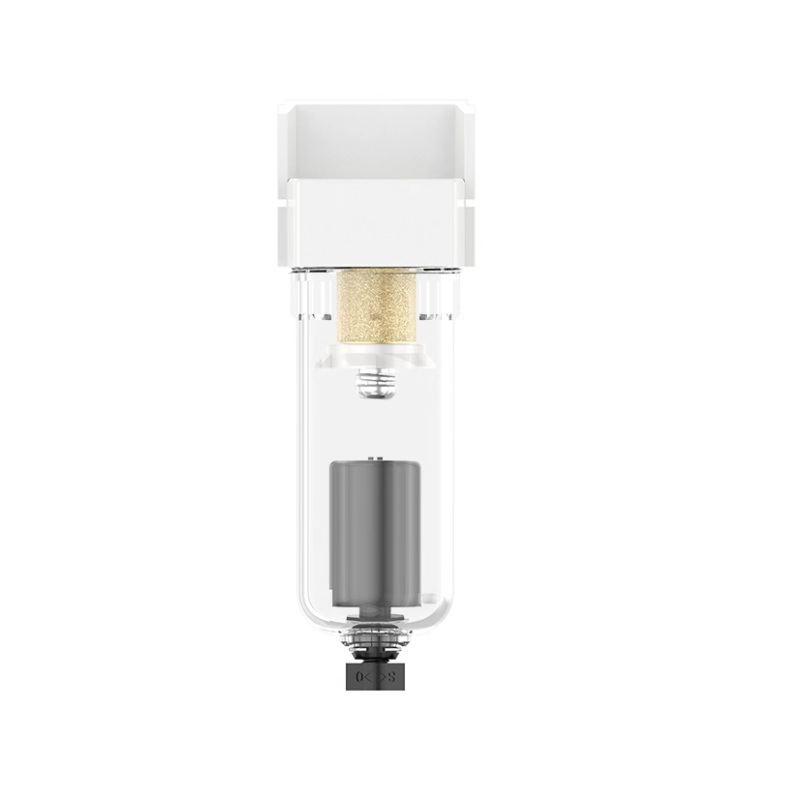

Air Filter AF Series White
About Air Filter AF Series White
The Air Filter AF Series White from CG Pneumatic is designed for clean, dry air delivery in pneumatic systems that require both functionality and aesthetic clarity. With a matte white finish, this unit offers effective removal of water, oil mist, and particles while visually blending into clean environments like labs, food processing lines, and medical facilities.
Its transparent polycarbonate bowl allows easy monitoring of water accumulation, while the compact design makes it suitable for space-restricted systems. This unit is compatible with regulators and lubricators for complete FRL setups.
Key features:
- Moisture and particle filtration for clean compressed air
- White body for cleanroom and modern industrial setups
- Transparent bowl for easy visual checks
- Manual or semi-automatic drain

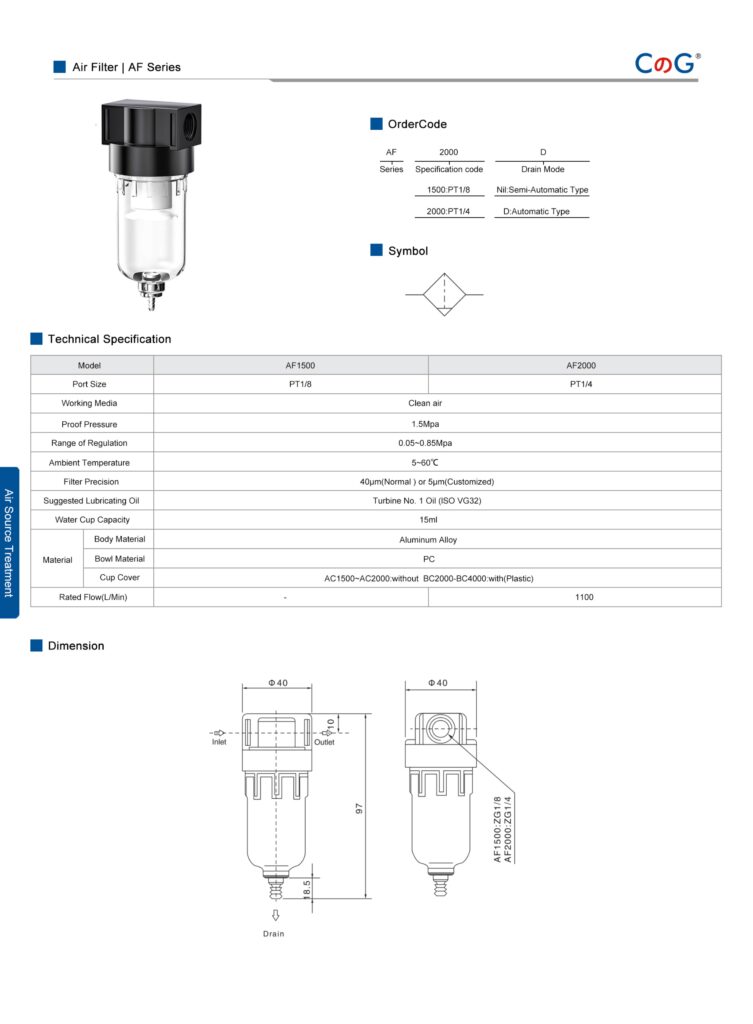

| Specification | Details |
|---|---|
| Model Series | AF1500 / AF2000 |
| Color Option | Black / Gold / White |
| Port Sizes | 1/8″, 1/4″ |
| Operating Pressure | 0.05 – 0.85 MPa |
| Maximum Pressure | 1.5 MPa (215 psi) |
| Operating Temperature | 5 – 60°C (41 – 140°F) |
| Filtration Accuracy | 40 µm standard (optional 5 µm) |
| Drain Type | Semi-automatic / Automatic (optional) |
| Bowl Material | Polycarbonate (cover optional) |
| Mounting | Bracket or direct body mounting |
