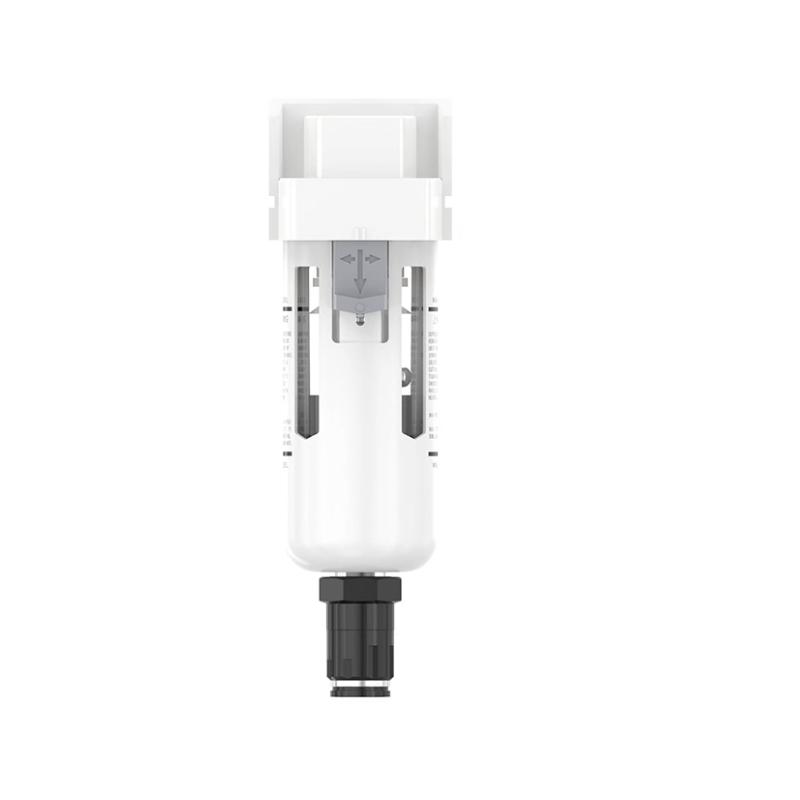

Air Filter AF Series White with Cover
About Air Filter AF Series White with Cover
The Air Filter AF Series White with Cover by CG Pneumatic provides reliable filtration of moisture and particles from compressed air, housed in a matte white body with a durable protective cover. Designed for environments that demand cleanliness and safety—like food processing, laboratories, and electronics—this filter ensures high air quality and operational stability.
The reinforced cover shields the transparent polycarbonate bowl from dust, impact, and UV exposure, making it ideal for sensitive or rugged use cases. Its compact structure allows for flexible installation in FRL combinations or standalone setups.
Key features:
- Removes moisture and particles from compressed air
- White finish with bowl cover for cleanliness and durability
- Transparent bowl for easy monitoring
- Manual or semi-auto drain
| Specification | Details |
|---|---|
| Model Series | AF1500 / AF2000 |
| Color Option | Black / Gold / White |
| Port Sizes | 1/8″, 1/4″ |
| Operating Pressure | 0.05 – 0.85 MPa |
| Maximum Pressure | 1.5 MPa (215 psi) |
| Operating Temperature | 5 – 60°C (41 – 140°F) |
| Filtration Accuracy | 40 µm standard (optional 5 µm) |
| Drain Type | Semi-automatic / Automatic (optional) |
| Bowl Material | Polycarbonate (cover optional) |
| Mounting | Bracket or direct body mounting |
