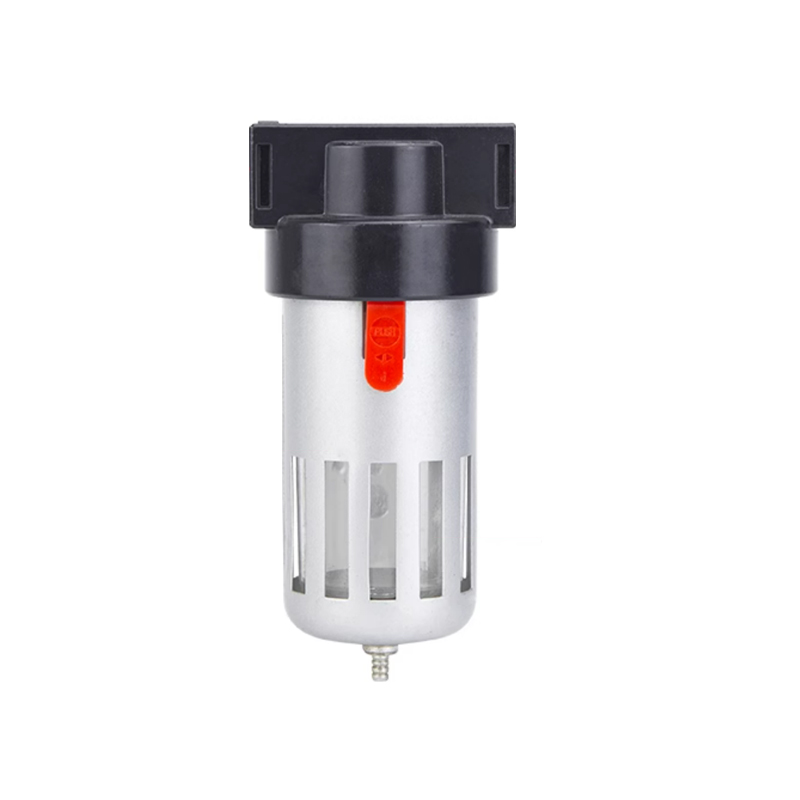

Air Filter BF Series White with Cover
About Air Filter BF Series White with Cover
The Air Filter BF Series White with Cover from CG Pneumatic provides efficient removal of moisture and contaminants from compressed air systems. With its matte white finish and reinforced protective cover, this air filter is ideal for use in hygiene-sensitive and modern industrial applications such as laboratories, food processing, packaging lines, and clean automation environments.
The transparent polycarbonate bowl, shielded by a durable cover, allows for safe visual monitoring of water accumulation and ensures extended service life under demanding conditions. Its modular, compact design supports quick installation and integration with regulators and lubricators to complete an FRL setup.
Key features:
- Moisture and particulate filtration in a clean white body
- Protective bowl cover enhances durability and safety
- Transparent bowl with optional manual/semi-auto drain
- Easy to maintain and install in space-limited systems
- Compatible with BF2000, BF3000, and BF4000 models

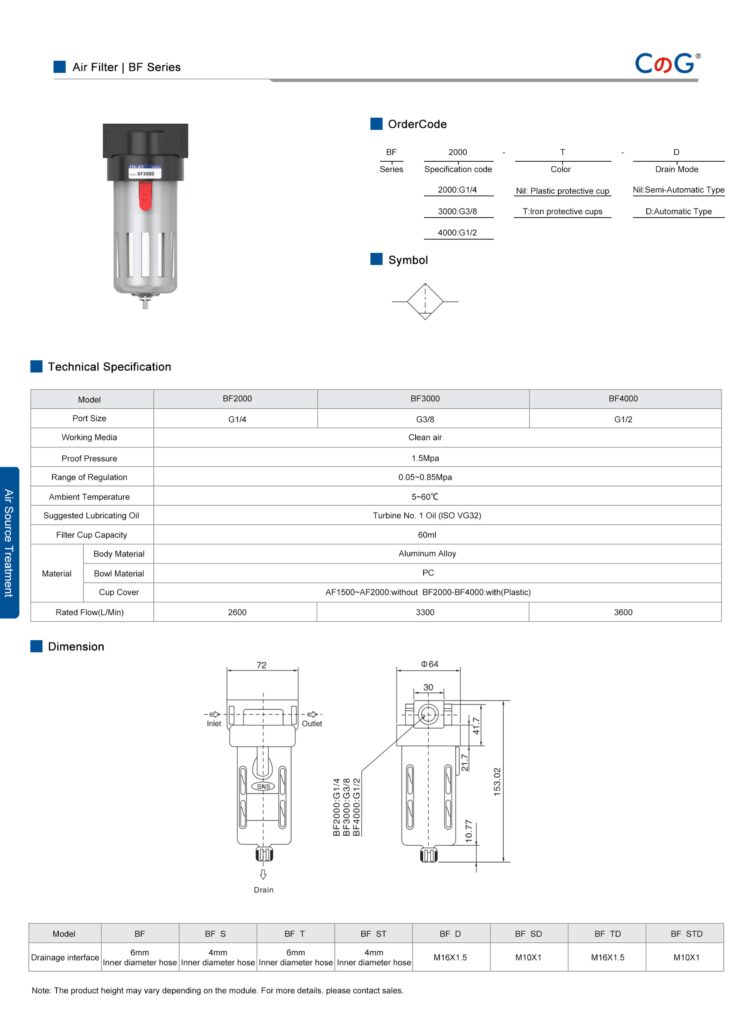

| Specification | Details |
|---|---|
| Model Series | BF2000 / BF3000 / BF4000 |
| Color Option | White |
| Port Sizes | G1/4, G3/8, G1/2 |
| Operating Pressure | 0.05 – 0.85 MPa |
| Maximum Pressure | 1.5 MPa (215 psi) |
| Operating Temperature | 5 – 60°C (41 – 140°F) |
| Filtration Accuracy | 40 µm standard (optional 5 µm) |
| Drain Type | Semi-automatic / Automatic (optional) |
| Bowl Material | Polycarbonate (cover optional) |
| Mounting | Bracket or direct body mounting |
Want to explore more CG pneumatic air source treatment ?Click here: Air Source Treatment Unit to learn more.
