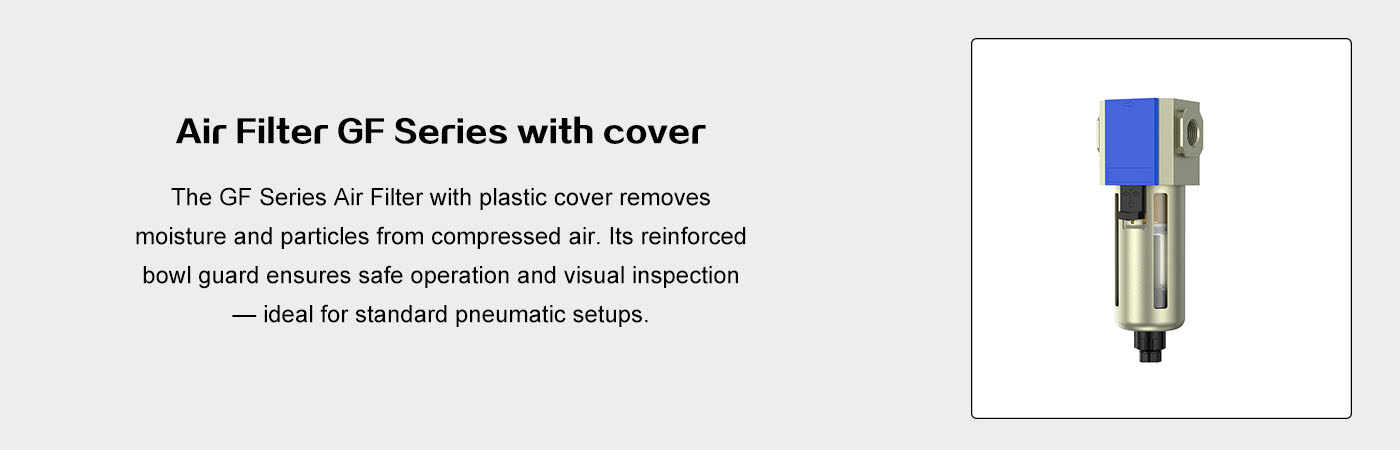

Air Filter GF Series with cover
About Air Filter GF Series with cover

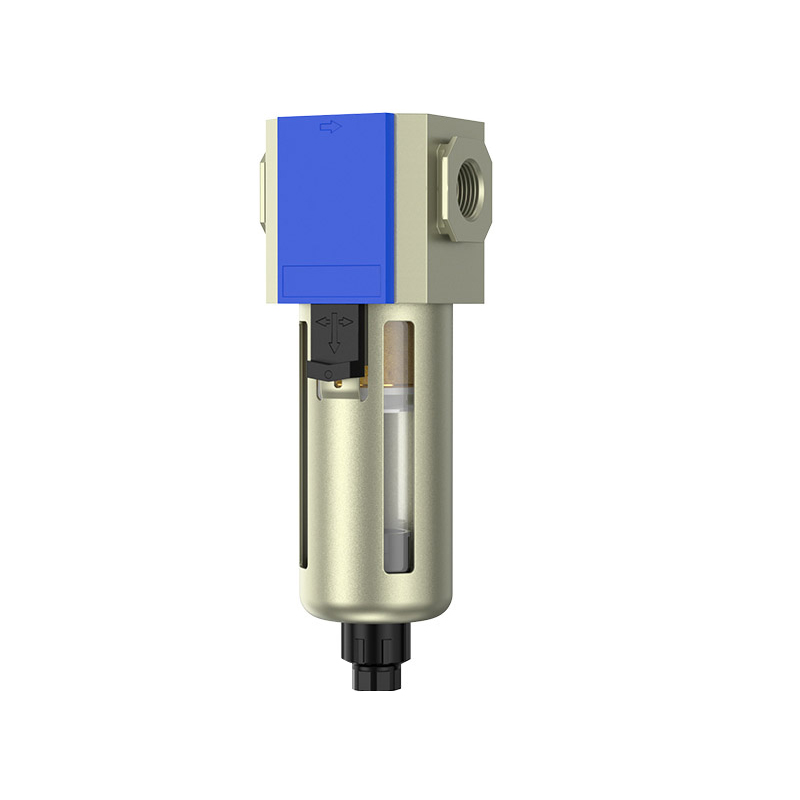

The Air Filter GF Series with Cover from CG Pneumatic is a heavy-duty air filtration unit equipped with a protective bowl cover for enhanced durability and safety. Designed to remove water, oil mist, and particles from compressed air, it is ideal for large-scale pneumatic systems operating in rugged or sensitive environments.
The reinforced cover shields the transparent polycarbonate bowl from dust, impact, and UV exposure, while allowing visual inspection. Its modular structure supports integration with regulators and lubricators, making it a flexible choice for production lines, packaging systems, and automation.
Key features:
- High-capacity moisture and particle filtration
- Transparent bowl with reinforced protective cover
- Compatible with GF200, GF300, and GF400 models
- Semi-auto or Automatic drain options
- Reliable performance in industrial air circuits
| Specification | Details |
|---|---|
| Model Series | GF200 / GF300 / GF400 |
| Port Sizes | G1/4 , G3/8 , G1/2 |
| Operating Pressure | 0.05 – 0.85 MPa (21 – 130 psi) |
| Maximum Pressure | 1.5 MPa (215 psi) |
| Operating Temperature | 5 – 60°C (41 – 140°F) |
| Filtration Accuracy | 40 µm standard (optional 5 µm) |
| Drain Type | Semi-auto / Automatic (optional) |
| Bowl Material | Polycarbonate (optional protective cover) |
| Mounting | Bracket or body mounting |
