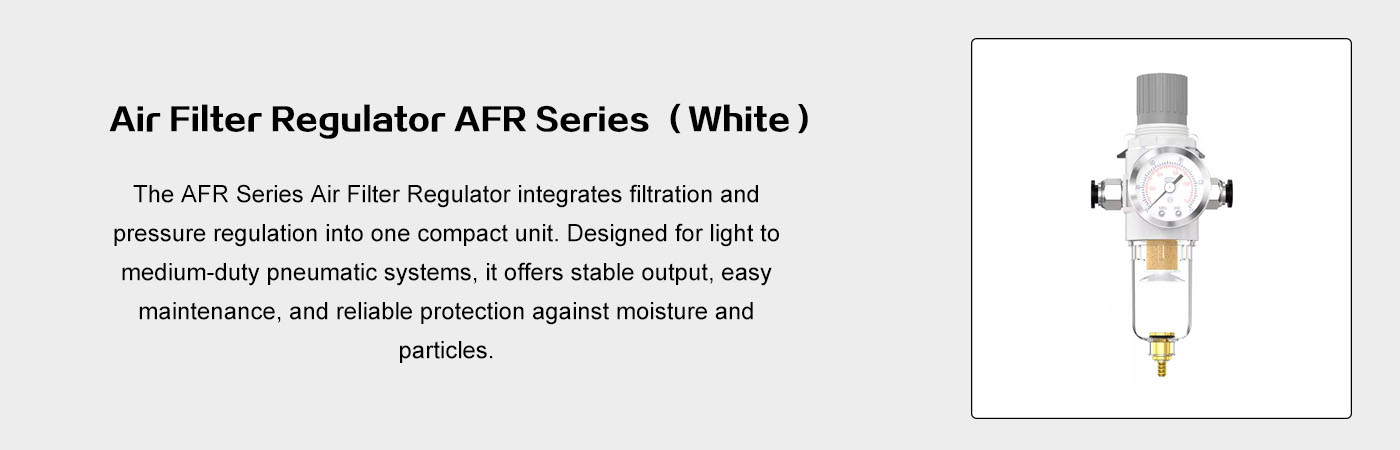

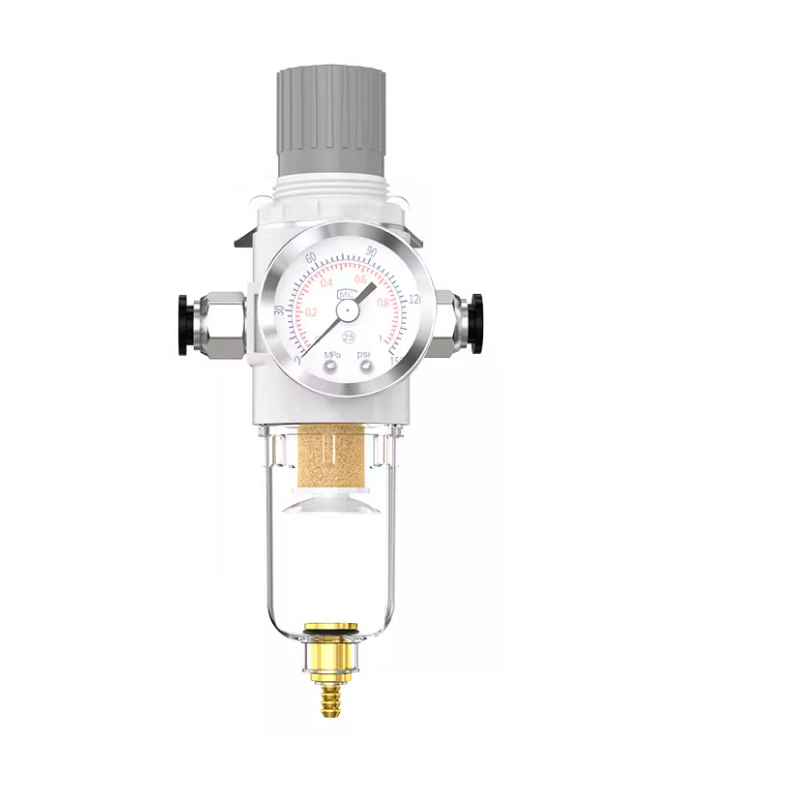

Air Filter Regulator AFR Series White
About Air Filter Regulator AFR Series White
The Air Filter Regulator AFR Series White from CG Pneumatic is a compact and efficient 2-in-1 air treatment unit designed for clean and controlled airflow in industrial pneumatic systems. Combining an air filter and a pressure regulator, this unit is perfect for installations where space-saving and performance are critical.
The sleek finish offers a modern appearance and additional surface durability, making it a great fit for contemporary machine designs. With transparent bowls for easy monitoring and precise pressure adjustment, the AFR Series delivers reliability in every use.
Key benefits:
- Integrated air filter and pressure regulator
- Compact design ideal for tight spaces
- Transparent polycarbonate bowl for quick inspections
- Optional manual or semi-automatic drain
| Specification | Details |
|---|---|
| Model Series | AFR1500 / AFR2000 |
| Color Option | Black / Gold / White |
| Port Sizes | 1/8″, 1/4″ |
| Operating Pressure | 0.05 – 0.85 MPa |
| Maximum Pressure | 1.5 MPa (215 psi) |
| Operating Temperature | 5 – 60°C (41 – 140°F) |
| Filtration Accuracy | 40 µm standard (optional 5 µm) |
| Drain Type | Semi-Automatic / Automatic |
| Bowl Material | Polycarbonate with optional protective cover |
| Mounting | Bracket or direct mounting |
