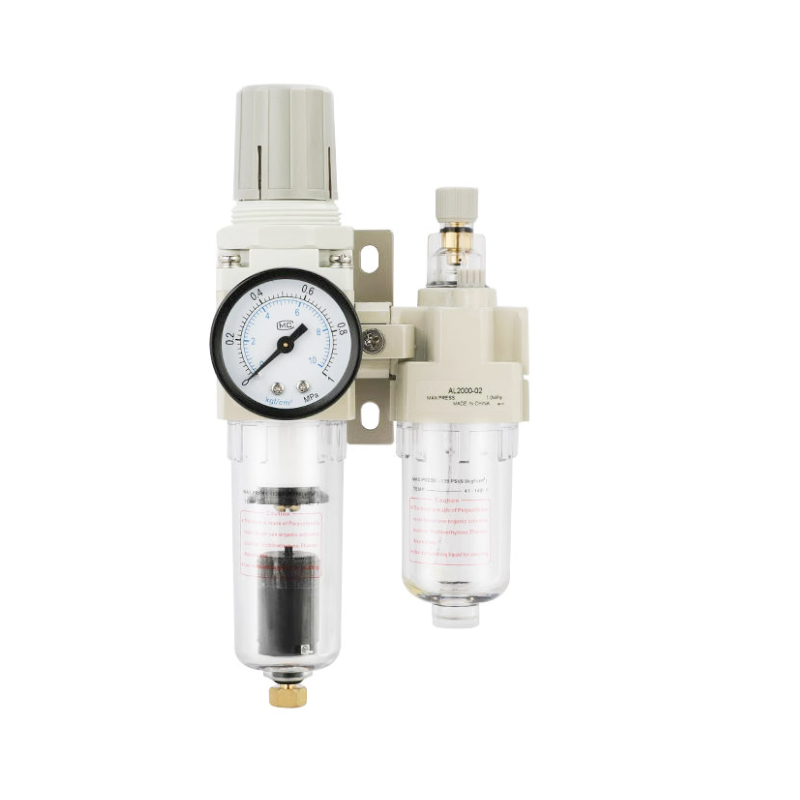

Air Filter Regulator and Lubricator AC Series

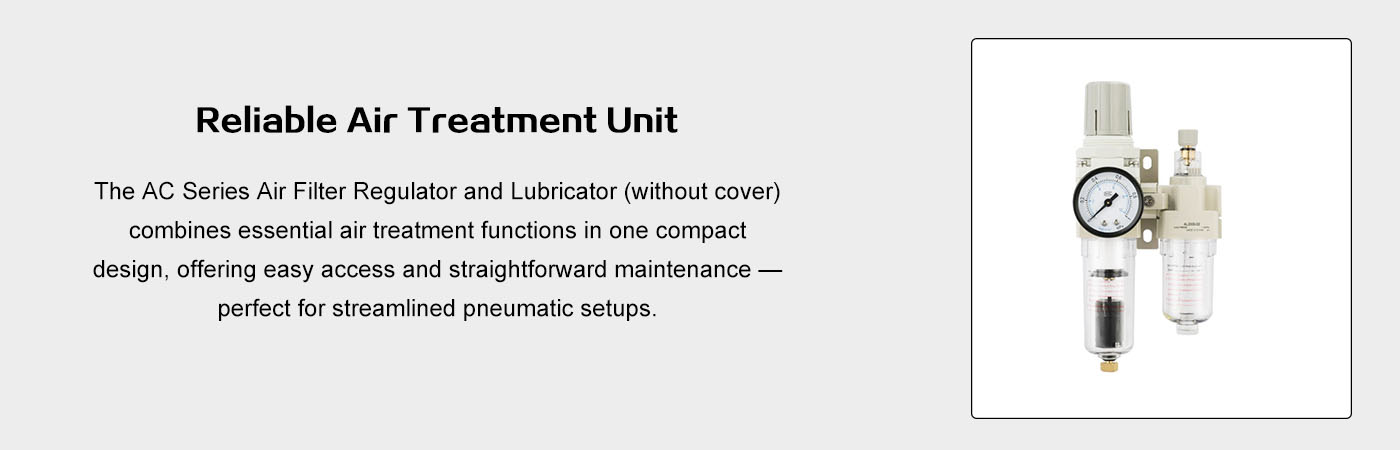

The Air Filter Regulator and Lubricator AC Series from CG Pneumatic offers an integrated air treatment system designed to improve the quality and consistency of compressed air in pneumatic applications. This compact and modular unit combines filtering, regulating, and lubricating functions to ensure that your equipment receives clean, controlled, and lubricated airflow.
Ideal for use in manufacturing, automation, and general industrial settings, the AC Series is engineered for ease of installation and maintenance. Transparent polycarbonate bowls allow for clear monitoring of oil and condensate levels, while precision pressure control ensures operational stability.
Key features:
- Integrated air filter, pressure regulator, and lubricator in one unit
- Stable output pressure for reliable pneumatic performance
- Oil-fog lubrication system to reduce wear on downstream equipment
- Compact structure saves installation space
- Optional bracket and mounting accessories for flexibility
The Air Filter Regulator and Lubricator AC Series ensures optimum air quality and efficiency, extending the service life of your pneumatic tools and systems.
| Parameter | Specification |
|---|---|
| Model | AC Series (AC1010, AC2010, AC3010, AC4010, AC5010) |
| Port Size | 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″ |
| Working Pressure | 0.05 – 0.85 MPa |
| Max Pressure | 1.5 MPa |
| Operating Temperature | 5 – 60°C |
| Filter Accuracy | 25 μm standard (optional 5 μm) |
| Bowl Material | Polycarbonate with protective cover (optional metal bowl) |
| Drain Type | Manual or automatic drain (depending on model) |
| Lubricator Type | Oil mist type with adjustable oil delivery |
| Medium | Filtered compressed air only |
