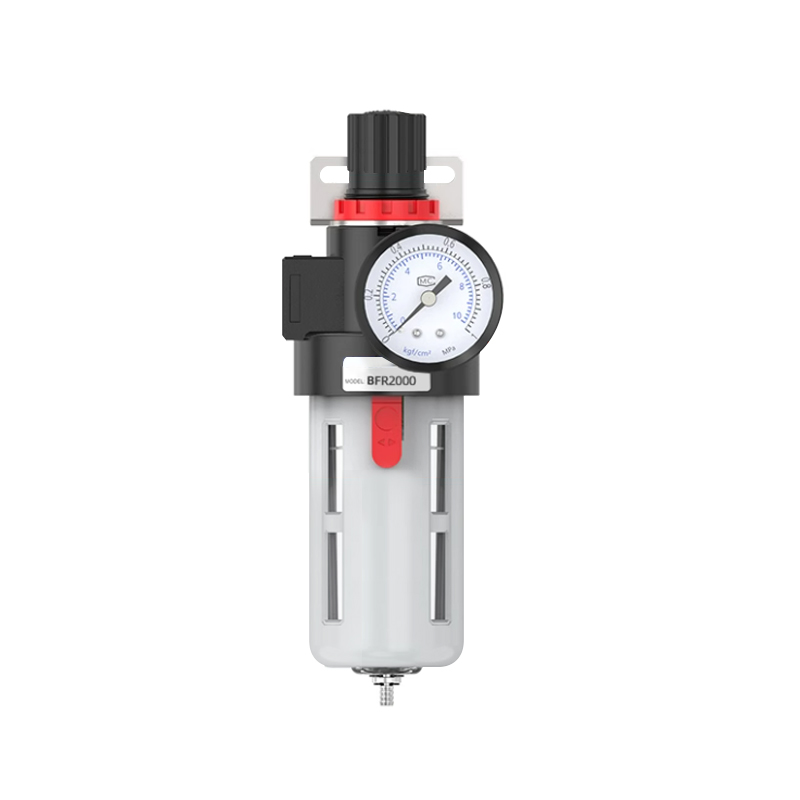

Air Filter Regulator BFR Series White with Cover
About Air Filter Regulator BFR Series White with Cover
The Air Filter Regulator BFR Series White with Cover by CG Pneumatic delivers clean, dry air and precise pressure regulation in one compact unit. Finished in matte white and equipped with a protective bowl cover, this 2-in-1 FR unit is ideal for high-end pneumatic applications where both hygiene and durability are essential.
It removes particulates and moisture from compressed air while ensuring steady pressure output. The transparent polycarbonate bowl allows easy condensate inspection, while the cover adds impact resistance and protects against harsh environments.
Key features:
- Integrated filter and regulator with bowl cover
- Matte white body ideal for medical, food, or lab use
- Transparent bowl for visual maintenance
- Adjustable pressure control with consistent output
- Space-saving design with optional bracket mounting

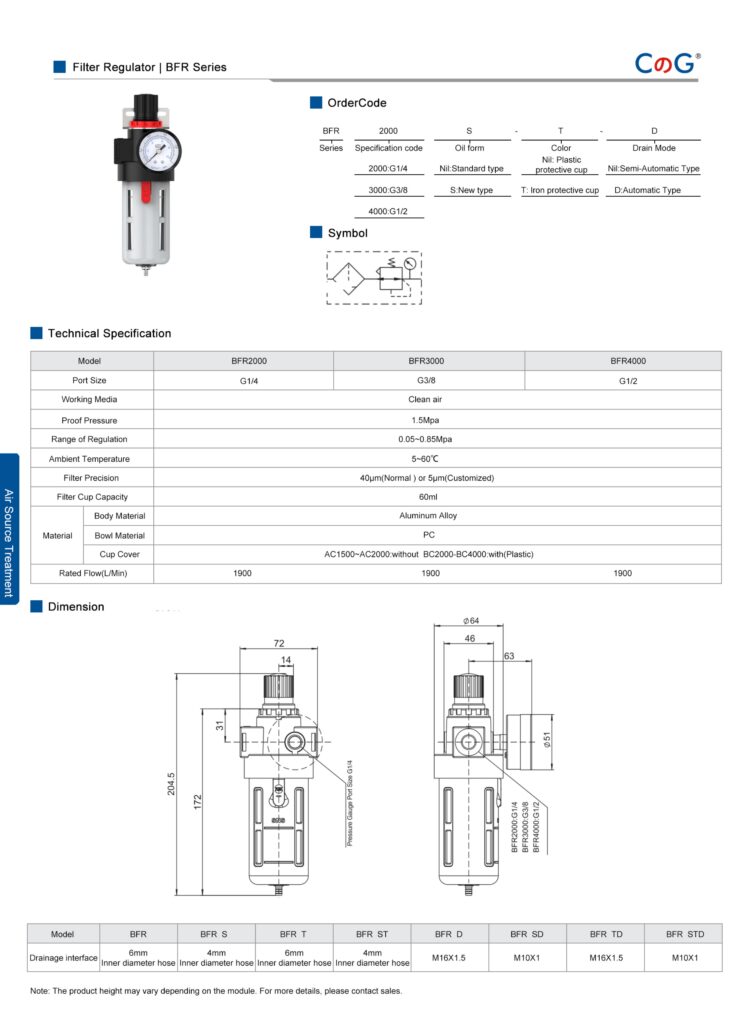

| Specification | Details |
|---|---|
| Model Series | BFR2000 / BFR3000 / BFR4000 |
| Color Option | White |
| Port Sizes | G1/4, G3/8, G1/2 |
| Operating Pressure | 0.05 – 0.85 MPa |
| Maximum Pressure | 1.5 MPa (215 psi) |
| Operating Temperature | 5 – 60°C (41 – 140°F) |
| Filtration Accuracy | 40 µm standard (optional 5 µm) |
| Drain Type | Semi-Automatic / Automatic |
| Bowl Material | Polycarbonate with optional protective cover |
| Mounting | Bracket or direct mounting |
