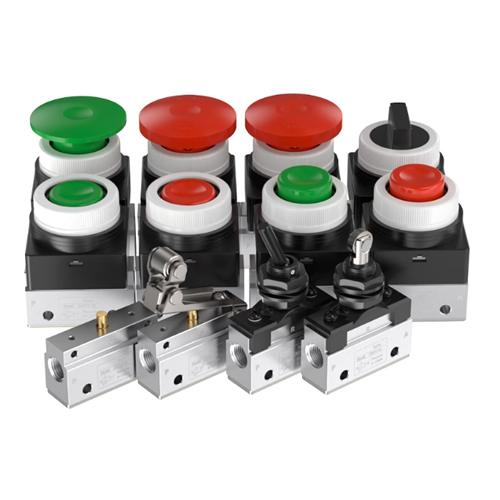

CM3 Series Mechanical Valves
Versatile Pneumatic Signal Control with CM3 Series Mechanical Valves
The CM3 Series Mechanical Valves are designed to provide reliable, responsive signal control in pneumatic systems. These valves come in a wide variety of actuator types—including mushroom push buttons, selector knobs, roller levers, and toggle switches—making them ideal for both manual operation and integration into automated systems.
Built with a compact yet robust aluminum alloy body, the CM3 series ensures long service life even in high-frequency operations. These valves are available in 3/2 or 5/2 configurations and offer stable switching under various pressure conditions.
Typical applications include pneumatic jigs, control panels, manufacturing lines, and testing setups where precise actuation and feedback are required. With multiple mounting options and actuator styles, the CM3 series offers exceptional flexibility for industrial control engineers.
| Parameter | Specification |
|---|---|
| Product Name | CM3 Series Mechanical Valve |
| Valve Type | 3/2 or 5/2 way, NC/NO available |
| Actuation Type | Push button, Selector knob, Lever, Roller, Toggle |
| Body Material | Aluminum alloy |
| Port Sizes | G1/8″, G1/4″ |
| Working Pressure | 0.15 – 0.8 MPa |
| Operating Temperature | 0°C to 60°C |
| Mounting Method | Panel or base mounting |
| Applications | Pneumatic control panels, testing stations, jigs |
