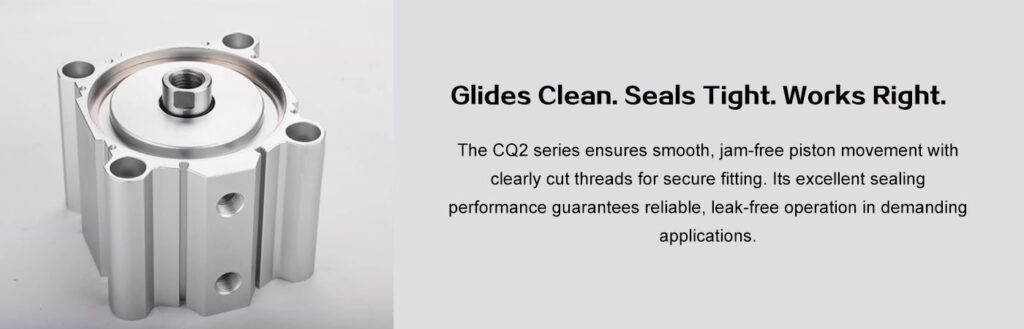

CQ2 Series compact cylinder
The CQ2 Series Compact Cylinder from CG Pneumatic is engineered for space-constrained applications requiring high output force. With its slim body design and wide mounting options, this cylinder delivers smooth, efficient actuation in compact equipment layouts. It’s a preferred choice for material handling, automotive lines, and pick-and-place systems where installation depth is limited.
| Parameter | Specification |
|---|---|
| Bore Size | 12mm to 100mm |
| Stroke Length | 5mm to 100mm (customizable) |
| Operating Pressure | 0.1–1.0 MPa |
| Operating Temperature Range | -10°C to +70°C |
| Cushion Type | Rubber / Air Cushion Optional |
| Port Size | M5, 1/8″, 1/4″, 3/8″, 1/2″ |
| Body Material | Aluminum Alloy |
| Piston Rod Material | Stainless Steel |
| Mounting Type | Through Hole, Threaded Hole, Flange |
| Acting Type | Double Acting |
