Hands-Free Air Control – FV320/420 Series Foot Valve

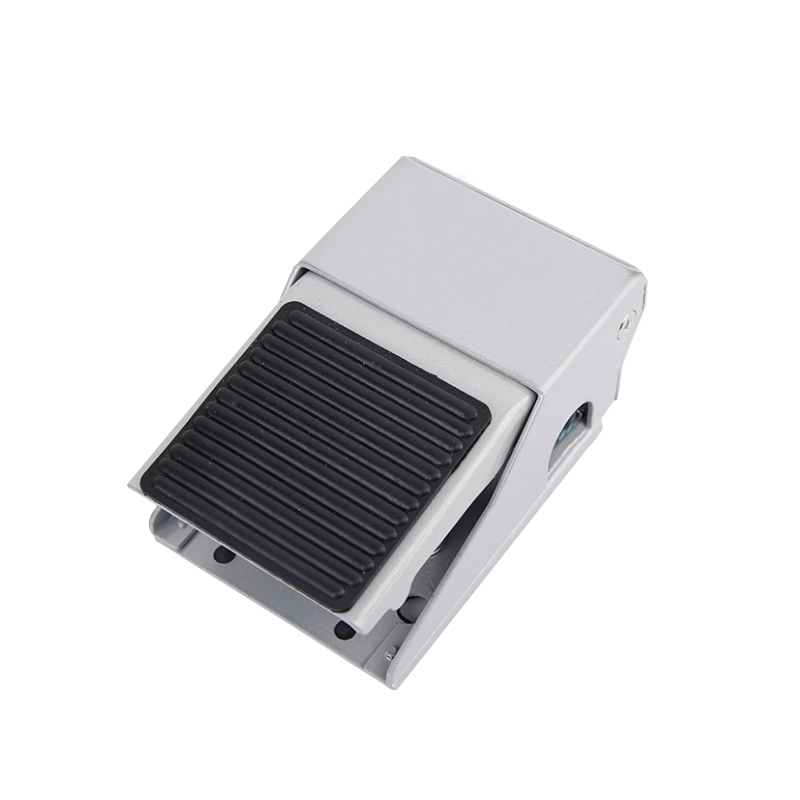

The CG Pneumatic FV320/420 Series Foot Valve provides reliable foot-operated pneumatic control for hands-free activation of air cylinders and tools. With a compact and heavy-duty aluminum body, this valve is ideal for industrial assembly lines, stamping machines, and production workstations.

Available in 3/2 way (FV320) and 5/2 way (FV420) configurations, it supports single- or double-acting cylinders with quick response and consistent flow. The foot pedal is ergonomically designed with anti-slip rubber padding and built-in spring return, offering safe and smooth operation.

Whether used in manual workstations or semi-automated processes, the FV Series foot valve helps improve efficiency, safety, and operator convenience.

ParameterSpecification
Product NameFV320/420 Series Foot Valve

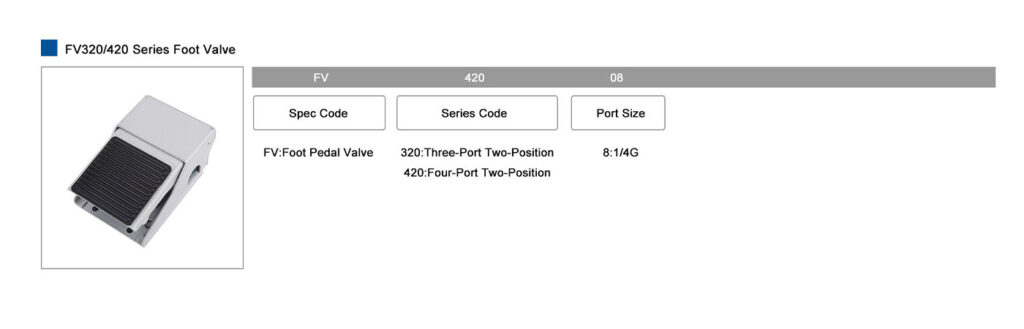

Valve TypeFV320: 3/2 Way, FV420: 5/2 Way
Actuation MethodFoot pedal (spring return)
Port SizeG1/4″, G3/8″
Body MaterialDie-cast aluminum
Pedal SurfaceNon-slip rubber pad
Operating Pressure0.15 – 0.8 MPa
Applicable MediumFiltered compressed air
Mounting TypeFloor or bracket mount
Application ScopePneumatic clamping, stamping, blowing, fixture activation
Key FeaturesHands-free control, durable body, fast switching
