HVFF Hand Valve Pneumatic Fitting
The HVFF Hand Valve Pneumatic Fitting allows manual airflow control with quick push-to-connect installation. Designed for shut-off or isolation in pneumatic circuits, it provides reliable ON/OFF control for air lines without the need for additional tools or wiring.

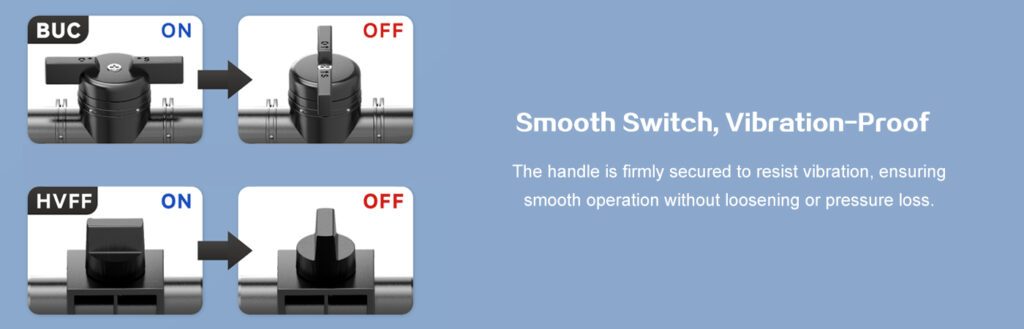

Equipped with a stable handle structure, the valve resists vibration and keeps operation smooth. It prevents unintentional shifting or pressure loss, even in dynamic industrial setups.

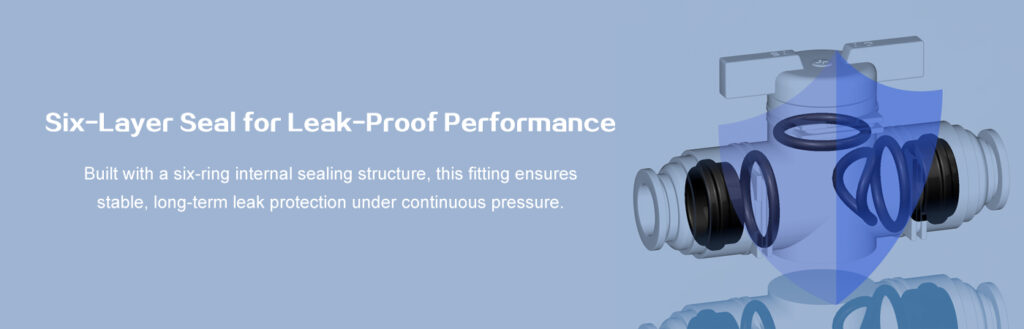

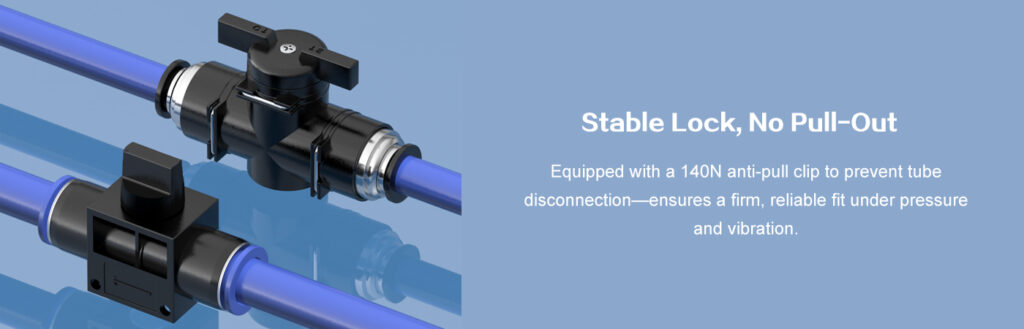

A six-layer internal sealing structure ensures long-lasting leak protection. The 140N anti-pull clip keeps the tubing locked firmly in place under pressure and frequent movement.
Ideal for use with PU or nylon tubes, this valve is suited for shutoff points, maintenance bypasses, and emergency stop locations in pneumatic systems.
Tested to handle up to 1.4 MPa peak pressure with consistent sealing performance—offering dependable manual air control with one push.
| Parameter | Value |
|---|---|
| Product Name | HVFF Hand Valve Pneumatic Fitting |
| Valve Function | Manual Air Shut-Off (ON/OFF Control) |
| Compatible Tubing | PU Tube / Nylon Tube |
| Handle Design | Vibration-Resistant, Stable Operation |
| Seal Structure | Six-Layer Leak-Proof Internal Sealing |
| Clamp Material | Stainless Steel (140N Anti-Pull Clip) |
| Seal Material | NBR Rubber O-Ring |
| Working Pressure | Up to 1.0 MPa (10 kgf/cm²) |
| Max Holding Pressure | 1.4 MPa (14 kgf/cm²) |
| Operating Temperature | 0~60°C |
| Application | Manual Flow Control in Pneumatic Systems |
