JM322 Series Mechanical Valves
Reliable Signal Control with JM322 Series Mechanical Valves

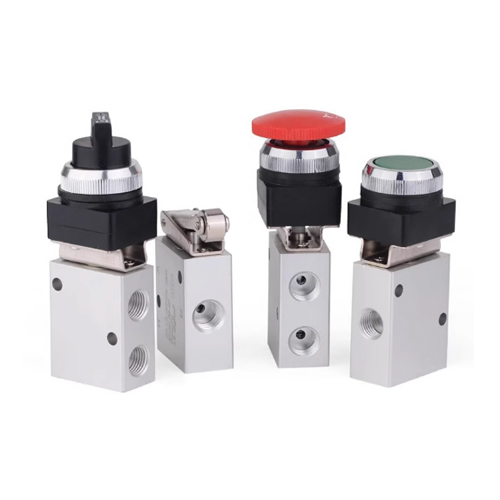

The JM322 Series Mechanical Valves are built for dependable signal transmission in pneumatic circuits, ideal for use in semi-automated and manual control systems. With multiple actuator options—such as mushroom head push button, selector knob, roller lever, and more—this series supports flexible interaction for operators or mechanical triggers.
These valves are typically used in applications where localized control is needed, such as assembly lines, testing fixtures, and workstation setups. The rugged aluminum body ensures durability and resistance to environmental wear, while the precise valve design ensures fast and accurate response.
Supporting both 3/2 and 5/2 valve configurations, JM322 valves offer easy installation, stable performance, and minimal maintenance requirements—making them a smart choice for efficient control in pneumatic automation.
| Parameter | Specification |
|---|---|
| Product Name | JM322 Series Mechanical Valve |
| Valve Type | 3/2 or 5/2 way, Normally Closed/Open |
| Actuation Method | Mechanical (Button, Lever, Selector Switch, etc.) |
| Body Material | Aluminum Alloy |
| Port Size | G1/8″, G1/4″ |
| Working Pressure | 0.15 – 0.8 MPa |
| Mounting Style | Base or panel mounted |
| Operating Temp Range | 0°C to 60°C |
| Application Areas | Manual control stations, jigs, testing benches, etc. |
Want to explore more CG pneumatic valve products?Click here: Pneumatic Valve to learn more.
