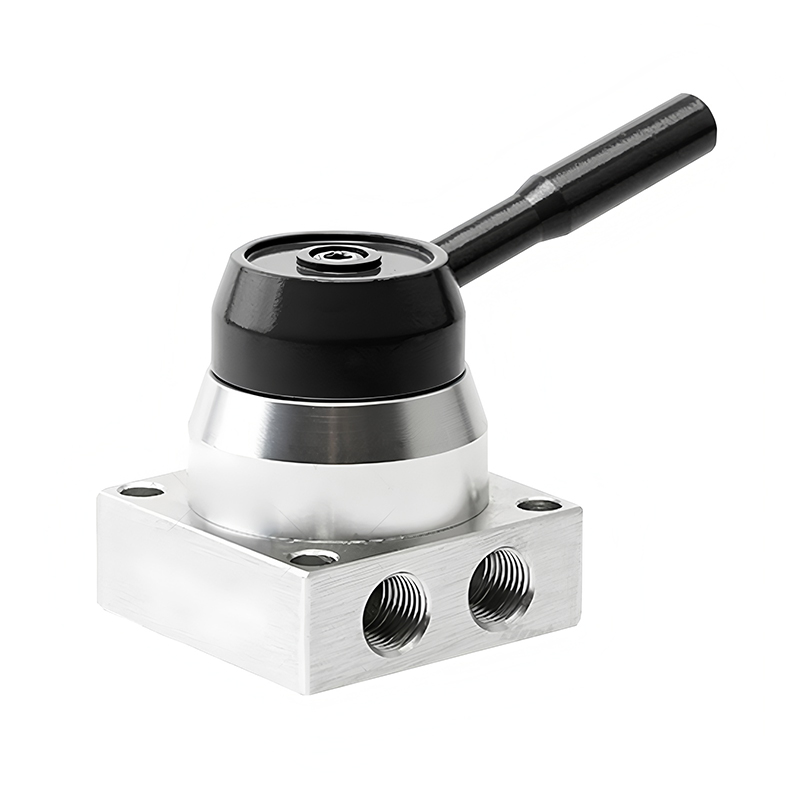

K24/K34 Series Hand switching Valve
Heavy-Duty Rotary Control – K24/K34 Series Hand Switching Valve
The CG Pneumatic K24/K34 Series Hand Switching Valve is a robust, rotary-operated valve designed for manual directional control of compressed air. Featuring a full-metal construction, this valve offers excellent durability, corrosion resistance, and stable performance in demanding industrial environments.
Available in 3/2 way (K24) and 4/2 way (K34) configurations, it allows precise control of pneumatic cylinders, actuators, or air supply routing without the need for electrical components. The ergonomic lever handle provides smooth actuation with tactile feedback, making it ideal for production lines, equipment panels, and maintenance stations.
This series is especially suitable for high-cycle applications that require manual override, isolation, or switching functions under pressure.
| Parameter | Specification |
|---|---|

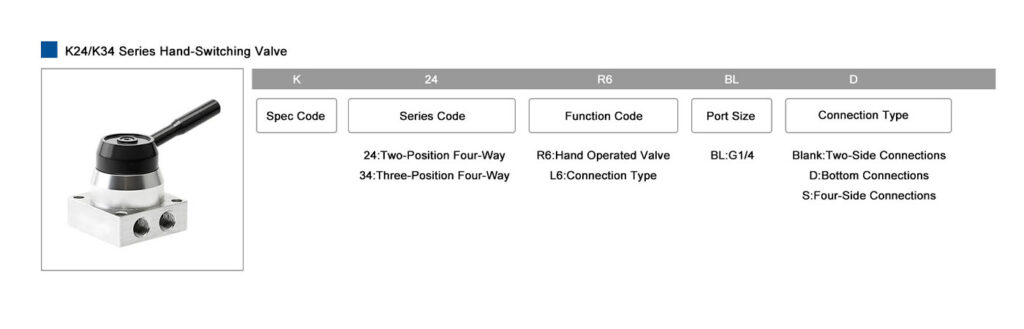

| Product Name | K24 / K34 Series Hand Switching Valve |
| Valve Type | K24: 3/2 Way, K34: 4/2 Way |
| Actuation Method | Manual rotary lever |
| Port Size | G1/4″, G3/8″, G1/2″ |
| Body Material | Aluminum alloy + zinc-coated or anodized steel |
| Handle Type | Metal lever with anti-slip grip |
| Operating Pressure | 0.15 – 1.0 MPa |
| Applicable Medium | Compressed air |
| Mounting Type | Base mount (4-bolt pattern) |
| Operating Temperature | -10°C ~ +70°C |
| Key Features | Full-metal build, smooth rotation, long service life |
| Application Scope | Industrial pneumatic panels, machine control, manual override systems |
