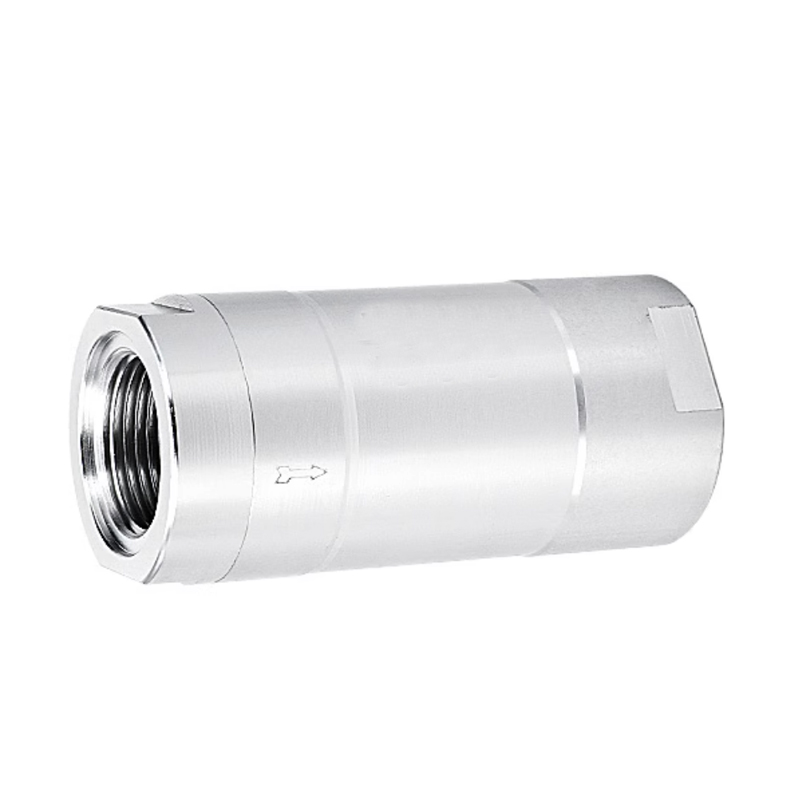

KA Series One Way Valve
Reliable Flow Control – KA Series One Way Pneumatic Valve

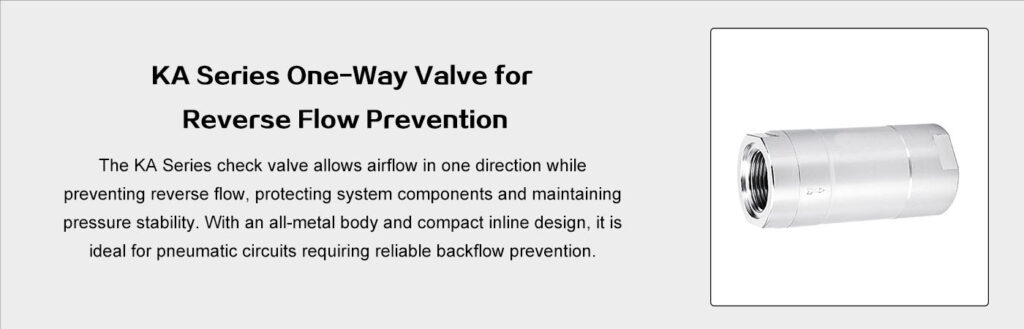

The KA Series One Way Valve is engineered to provide reliable unidirectional airflow, preventing reverse flow and ensuring system stability in pneumatic circuits. Ideal for protecting actuators and other sensitive components, this check valve allows air to flow freely in one direction while blocking it in the opposite direction.
Its precision-machined aluminum body and corrosion-resistant inner components guarantee durability and consistent sealing. Compact in design yet robust in performance, the KA Series is easy to install and compatible with a wide range of industrial automation systems.
Whether you need to safeguard your cylinders, valves, or vacuum systems, the KA Series one-way valve offers long-term reliability and peace of mind.
| Parameter | Specification |
|---|---|
| Product Name | KA Series One Way Valve (Check Valve) |
| Function | Allows airflow in one direction only |
| Body Material | Aluminum Alloy |

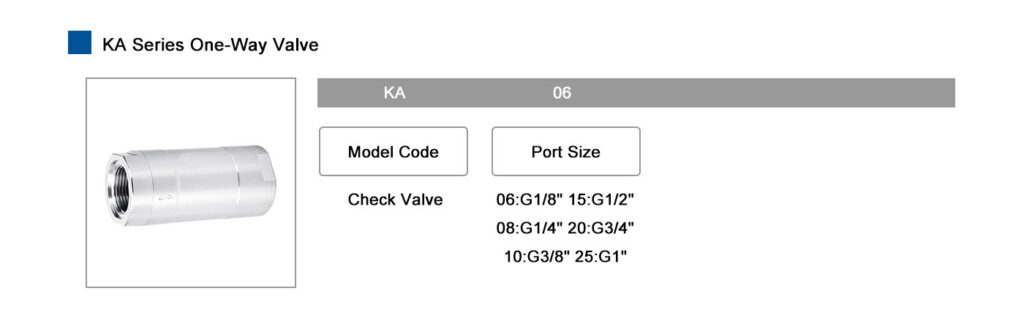

| Port Size | G1/8″, G1/4″, G3/8″, G1/2″ |
| Operating Pressure | 0.05 – 1.0 MPa |
| Applicable Medium | Compressed Air |
| Operating Temperature | -5°C to 60°C |
| Installation Type | Inline Threaded |
| Features | Anti-backflow, corrosion-resistant, compact size |
| Applications | Cylinders, valves, vacuum systems, air lines |
