M5 Series Mechanical Valves
M5 Series Mechanical Valves – Versatile Manual Control for Pneumatic Systems

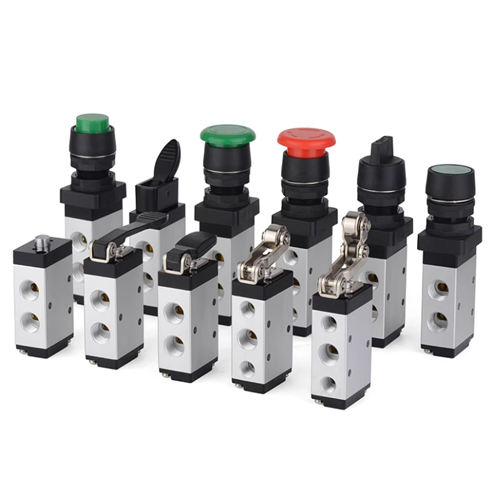

The M5 Series Mechanical Valves are designed for high-precision, low-profile manual control in pneumatic automation setups. Compact and durable, these valves feature a robust aluminum body and are available with various actuator heads, including push buttons, roller levers, selector switches, and mushroom heads.
Supporting both 3/2 and 5/2 configurations, the M5 series ensures reliable air flow switching with fast response and minimal leakage. Its modular design allows easy integration into control panels, jig assemblies, and workstation interfaces.
Ideal for compact systems where space is limited but performance is essential, M5 mechanical valves deliver smooth and consistent control in manufacturing, packaging, and testing applications.
| Parameter | Specification |
|---|---|
| Product Name | M5 Series Mechanical Valve |
| Valve Type | 3/2 or 5/2 way |
| Actuator Options | Push button, lever, selector, roller, mushroom head |
| Body Material | Aluminum alloy |
| Port Size | G1/8″, G1/4″ |
| Working Pressure | 0.15 – 0.8 MPa |
| Operating Temperature | 0°C to 60°C |
| Mounting Type | Panel-mounted or inline |
| Applications | Manual pneumatic control, automation jigs, machines |
