MV522 Series Mechanical Valves
MV522 Series Mechanical Valves – Compact & Reliable Pneumatic Control

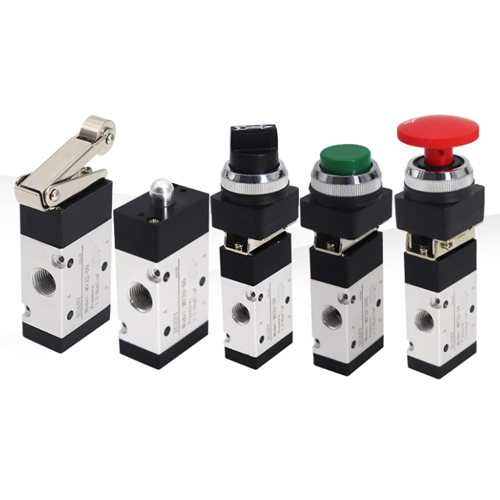

The MV522 Series Mechanical Valves are a practical solution for manual pneumatic control in industrial automation systems. Designed for durability and performance, this series features a compact aluminum body, stainless steel internal parts, and multiple actuator options such as push button, roller lever, mushroom head, and selector knob.
These valves are available in 3/2 and 5/2 configurations, suitable for controlling air cylinders, signal input, and pilot operations. Their ergonomic design ensures easy actuation, while the precision internal mechanism delivers stable airflow control and long service life.
MV522 valves are ideal for applications in jig systems, manual control stations, packaging machinery, and assembly automation where simple yet effective pneumatic switching is required.

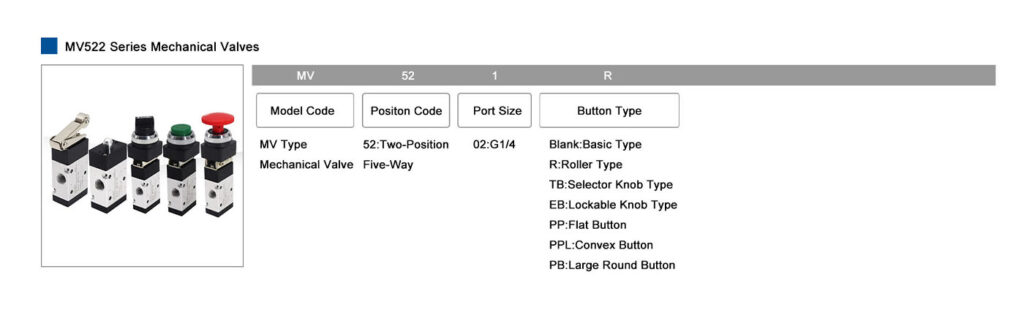

| Parameter | Specification |
|---|---|
| Product Name | MV522 Series Mechanical Valve |
| Valve Type | 3/2 or 5/2 way |
| Actuator Options | Push button, selector switch, mushroom head, lever |
| Body Material | Aluminum alloy |
| Port Size | G1/8″, G1/4″ |
| Working Pressure | 0.15 – 0.8 MPa |
| Operating Temperature | 0°C to 60°C |
| Mounting Type | Panel-mounted or inline |
| Applications | Pneumatic actuation, jig control, manual air systems |
