OPT Series Drainers
Smart Moisture Management – OPT Series Automatic Drain Valves

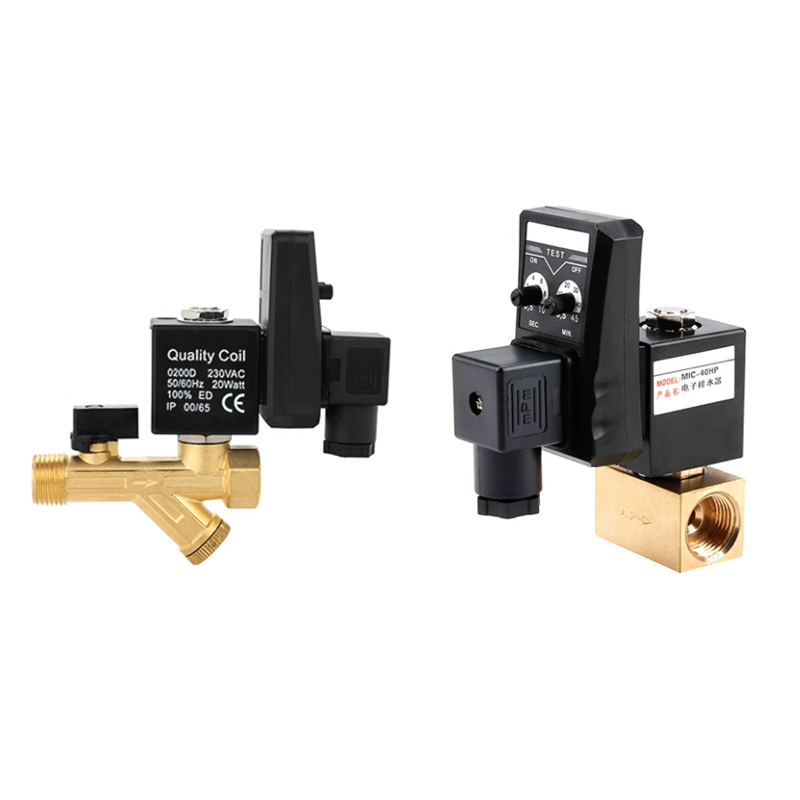

The CG Pneumatic OPT Series Drainers are electronic automatic drain valves designed to efficiently discharge condensate from compressed air systems. Equipped with an integrated timer and solenoid valve, they help prevent water buildup in compressors, air receivers, filters, and dryers.
With adjustable ON/OFF cycle settings, the OPT Series allows precise control over drainage intervals, ensuring optimal air quality and protecting downstream pneumatic equipment from corrosion and damage. The brass valve body and high-quality coil ensure reliable operation under continuous use.
Easy to install and maintain, this drain valve is ideal for factories, workshops, and any industrial environment using compressed air systems.
| Parameter | Specification |
|---|---|
| Product Name | OPT Series Electronic Auto Drain Valve |
| Coil Voltage | AC220V / AC110V / DC24V / DC12V |
| Power Consumption | 20W / 100%ED |
| Timer Range | ON: 0.5–10 sec / OFF: 0.5–45 min (adjustable) |
| Inlet/Outlet Size | G1/4″, G3/8″, G1/2″ (optional) |
| Body Material | Brass |
| Max Pressure | 1.6 MPa |
| Working Medium | Compressed air, non-corrosive gases |
| Protection Class | IP65 |
| Application Scope | Compressors, air tanks, FRL units, dryers |
| Key Features | Adjustable timer, easy wiring, reliable coil |
