Pneumatic Parts Lubricator AL Series White with Cover

Pneumatic Parts Lubricator AL Series White with Cover

Pneumatic Parts Lubricator AL Series White with Cover

Description
Pneumatic Parts Lubricator AL Series White with Cover
Pneumatic Parts Lubricator AL Series White with Cover
Pneumatic Parts Lubricator AL Series White with Cover

Pneumatic Lubricator AL Series White with Cover

About Pneumatic Lubricator AL Series White with Cover

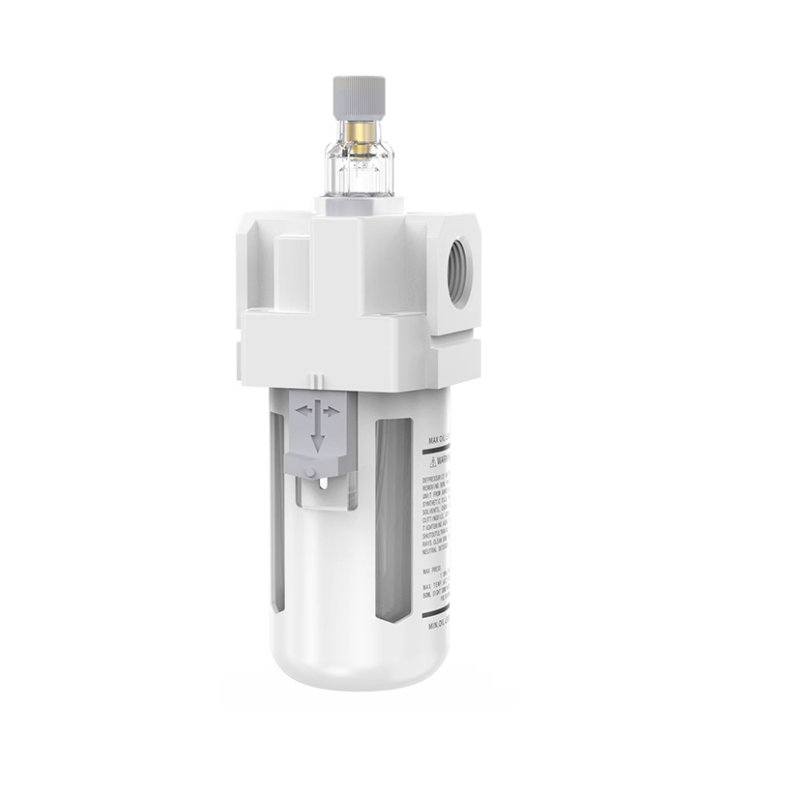

Pneumatic Lubricator AL Series White with Cover from CG Pneumatic offers safe and consistent oil mist lubrication for pneumatic systems in sensitive environments. Its matte white finish and reinforced protective cover make it ideal for cleanrooms, food-grade applications, laboratories, and automated equipment requiring visual cleanliness and enhanced protection.

The transparent bowl allows for quick oil level monitoring, while the cover shields it from dust, UV, and impact. Combined with its adjustable oil feed control and modular design, it ensures both safety and system performance.

Key features:

  • Precise oil mist lubrication for pneumatic tools and actuators
  • Matte white body with reinforced bowl cover
  • Adjustable oil feed via needle valve
  • Transparent polycarbonate bowl for visual inspection
  • Compatible with AL1500, AL2000 series models
SpecificationDetails
Model SeriesAL1500 / AL2000
Color OptionBlack / Gold / White
Port Sizes1/8″, 1/4″
Operating Pressure0.05 – 0.85 MPa (21 – 130 psi)
Maximum Pressure1.5 MPa (215 psi)
Operating Temperature5 – 60°C (41 – 140°F)
Oil Feed AdjustmentStepless needle valve
Bowl MaterialPolycarbonate (cover optional)
MountingBracket or direct mounting

Want to explore more CG pneumatic air source treatment ?Click here: Air Source Treatment Unit to learn more.

Full Range of CG Air Parts

Build a complete pneumatic system with cylinders, valves, tubes, and more.
