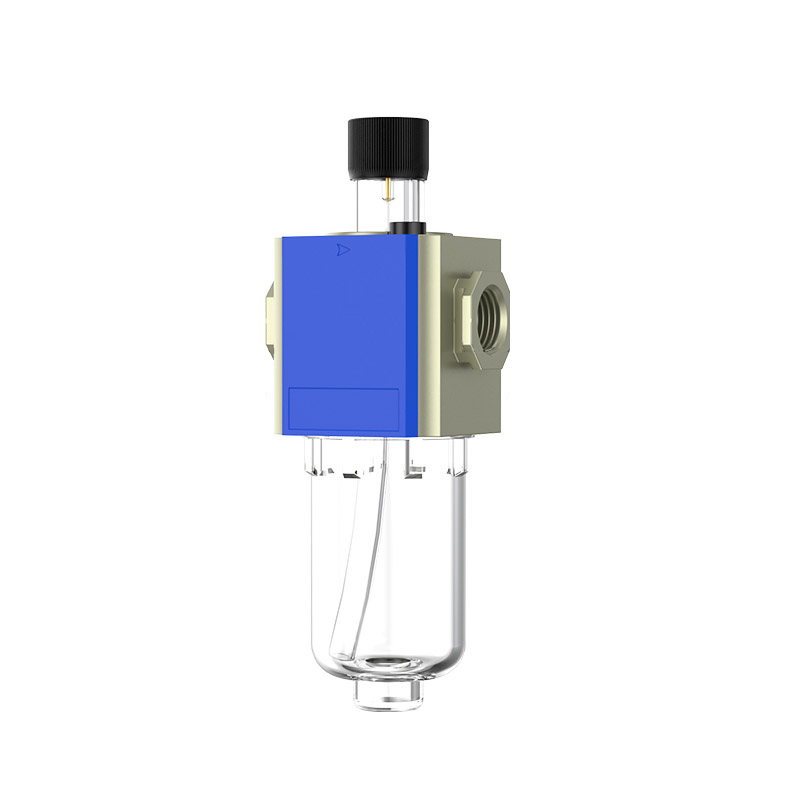

Pneumatic Parts Lubricator GL Series
About Pneumatic Parts Lubricator GL Series
The Pneumatic Parts Lubricator GL Series from CG Pneumatic is a high-capacity oil mist lubricator designed for industrial air systems requiring precise and continuous lubrication. It reduces friction and wear in pneumatic cylinders, valves, and tools, extending service life and improving performance.
Featuring a modular body and transparent polycarbonate bowl, the GL Series offers easy monitoring and flexible installation. Its stepless needle valve allows users to control the oil flow accurately, making it ideal for production lines, packaging systems, and automation equipment.
Key features:
- Steady and adjustable oil mist output
- Designed for high-flow industrial air systems
- Transparent bowl for quick oil level inspection
- Modular structure fits with GF and GFR series
- Compatible with GL200, GL300, and GL400 models

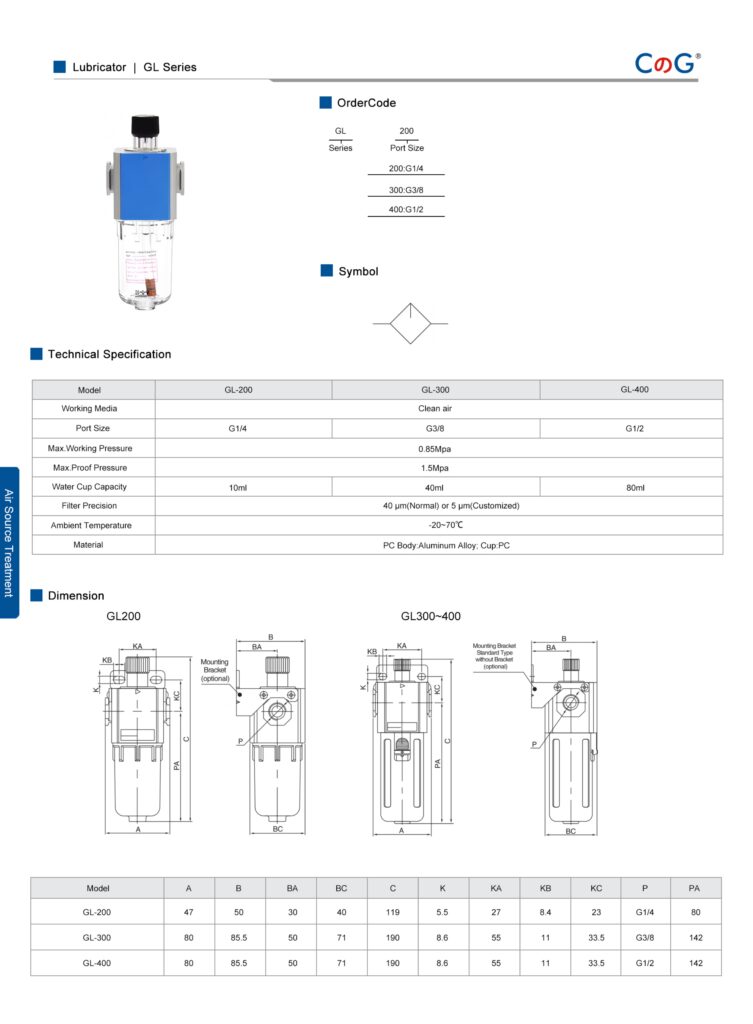

| Specification | Details |
|---|---|
| Model Series | GL200 / GL300 / GL400 |
| Port Sizes | G1/4 , G3/8 , G1/2 |
| Operating Pressure | 0.85 MPa |
| Maximum Pressure | 1.5 MPa (215 psi) |
| Operating Temperature | 5 – 60°C (41 – 140°F) |
| Oil Feed Adjustment | Stepless needle valve |
| Bowl Material | Polycarbonate (cover optional) |
| Mounting | Bracket or direct mounting |
Want to explore more CG pneumatic air source treatment ?Click here: Air Source Treatment Unit to learn more.
