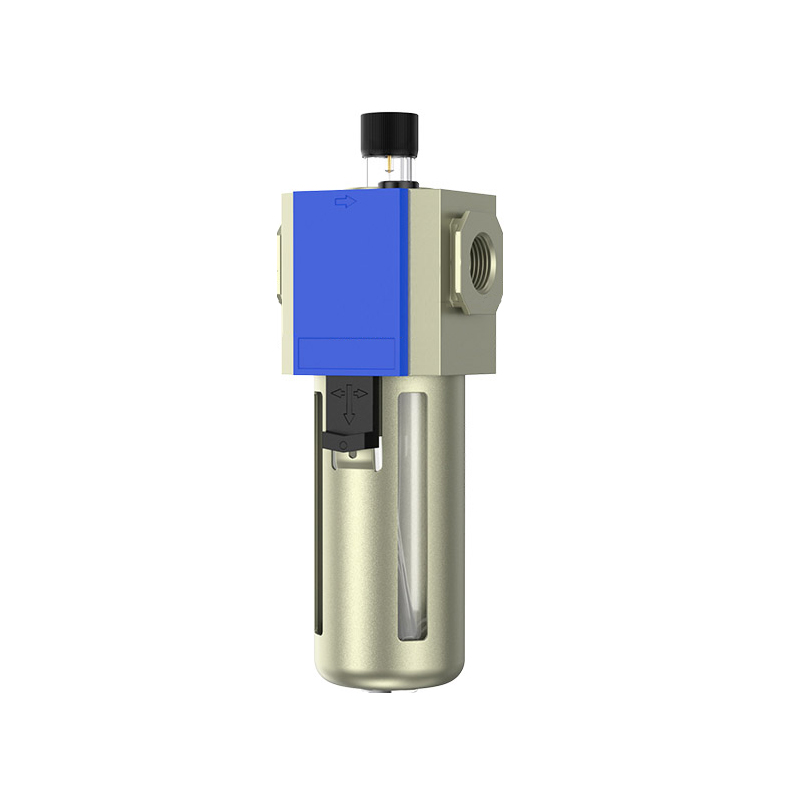

Pneumatic Parts Lubricator GL Series with cover
About Pneumatic Parts Lubricator GL Series with cover
The Pneumatic Parts Lubricator GL Series with Cover by CG Pneumatic provides efficient and adjustable oil mist lubrication for large-scale pneumatic systems. Designed for industrial applications, it includes a reinforced bowl cover that protects the transparent polycarbonate bowl from impact, dust, and UV damage.
This lubricator helps reduce wear and friction in cylinders, valves, and pneumatic tools, extending equipment lifespan. With a stepless needle valve for precise oil control and modular design, it integrates easily into GF and GFR systems.
Key features:
- High-flow oil mist lubricator with bowl protection
- Adjustable oil feed via precision needle valve
- Transparent polycarbonate bowl with impact-resistant cover
- Ideal for automation, packaging, and pneumatic systems
- Available in GL200, GL300, and GL400 models
| Specification | Details |
|---|---|
| Model Series | GL200 / GL300 / GL400 |
| Port Sizes | G1/4 , G3/8 , G1/2 |
| Operating Pressure | 0.85 MPa |
| Maximum Pressure | 1.5 MPa (215 psi) |
| Operating Temperature | 5 – 60°C (41 – 140°F) |
| Oil Feed Adjustment | Stepless needle valve |
| Bowl Material | Polycarbonate (cover optional) |
| Mounting | Bracket or direct mounting |
