Pneumatic Parts Regulator BR Series white
About Pneumatic Parts Regulator BR Series white
The Pneumatic Parts Regulator BR Series White from CG Pneumatic provides precise and reliable air pressure control in a compact body finished in matte white. This color variant is ideal for industries that prioritize cleanliness and aesthetics, such as food processing, laboratory automation, and cleanroom environments.
It features a lockable pressure adjustment knob and an integrated gauge port for monitoring system pressure. With its modular design, the BR Series can be combined with air filters and lubricators for a complete air preparation system.
Key features:
- Clean matte white design for hygiene-sensitive applications
- Consistent and adjustable pressure output
- Lockable knob prevents accidental changes
- Gauge port included for real-time pressure visibility

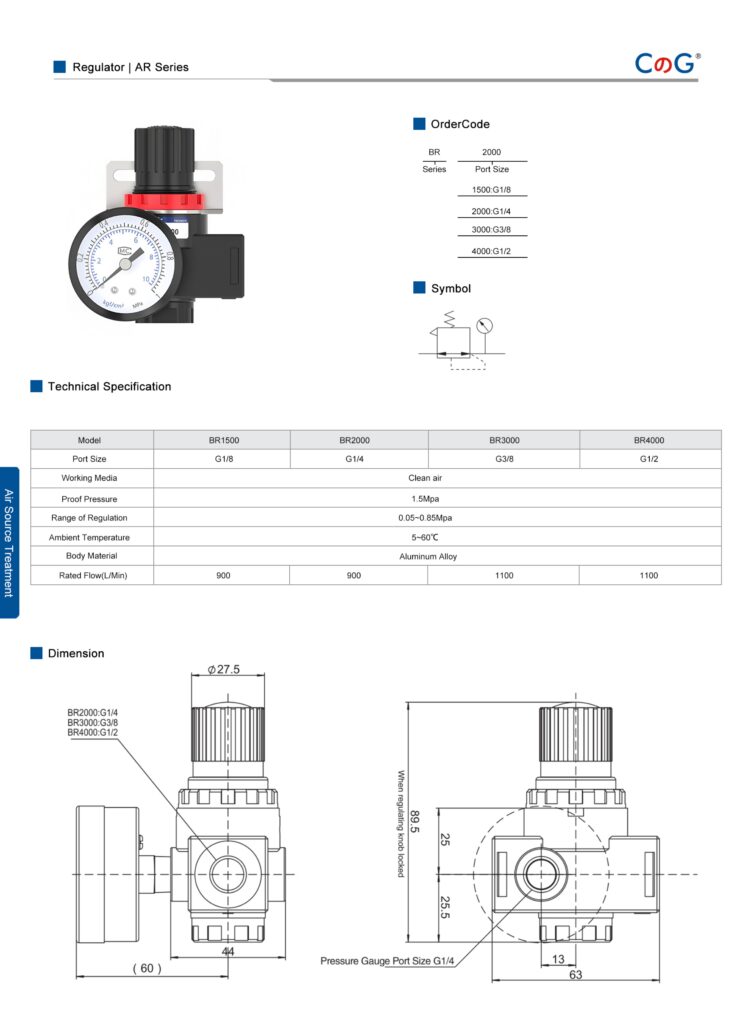

| Specification | Details |
|---|---|
| Model Series | BR1500 / BR2000 / BR3000 / BR4000 |
| Color Option | White |
| Port Sizes | G1/8 , G1/4 , G 3/8 , G1/2 |
| Operating Pressure | 0.05 – 0.85 MPa |
| Maximum Pressure | 1.5 MPa (215 psi) |
| Operating Temperature | 5 – 60°C (41 – 140°F) |
| Pressure Adjustment | Lockable knob |
| Gauge Port | Included (standard BSP or NPT) |
| Mounting | Panel or bracket mounting |
