PU Union Straight Pneumatic Fitting
This PU Union Straight Pneumatic Fitting ensures a fast and secure connection for PU or nylon tubes. Built with a stainless steel 160N retaining clip and NBR rubber seal, it offers high-pressure resistance and excellent durability. Designed for industrial dry air systems, it provides reliable performance even under vibration and repeated use.
| Parameter | Value |
|---|---|
| Product Name | Pneumatic Push-to-Connect Fitting |
| Compatible Tubing | PU Tube / Nylon Tube |
| Working Medium | Industrial Dry Air |
| Operating Temperature | 0~60°C |

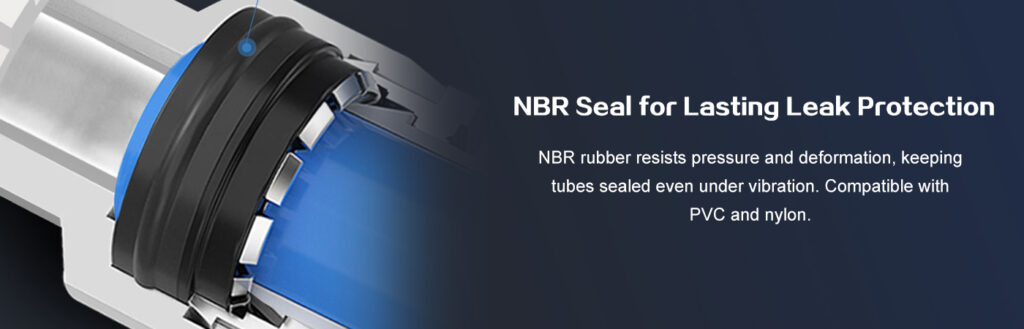

| Seal Material | NBR Rubber O-Ring |
| Retaining Clip | Stainless Steel (160N Clamping Force) |
| Guaranteed Pressure | 1.0 MPa (10 kgf/cm²) |
| Max Holding Pressure | 1.4 MPa (14 kgf/cm²) |

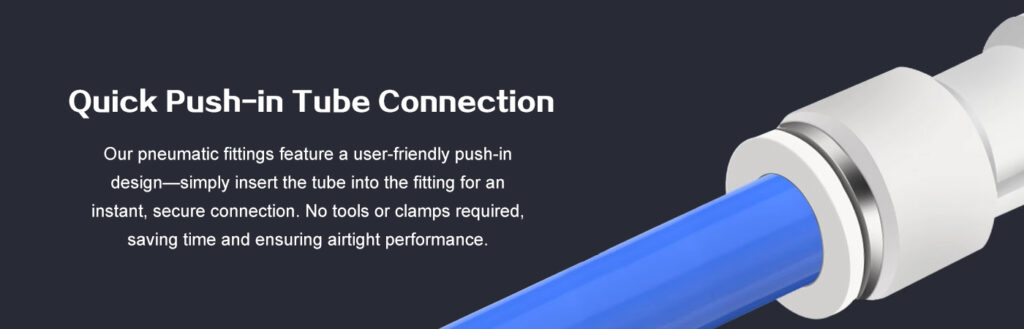

| Connection Type | Push-to-Connect |
| Reusability | High – Maintains grip after repeated use |
