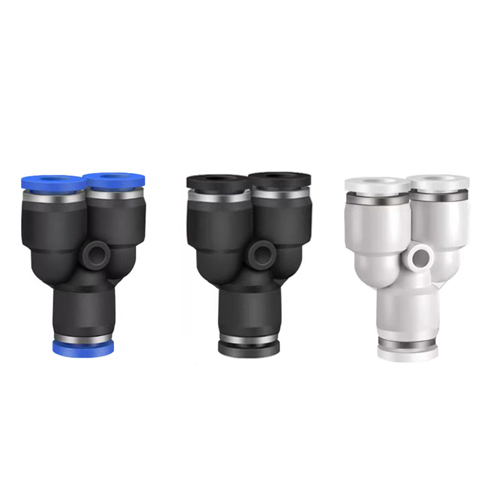

PW Diff.Diam.Union Y Pneumatic Fitting
PW Diff.Diam.Union Y Pneumatic Fitting connects two different-sized pneumatic tubes in a Y-shaped layout, allowing smooth airflow splitting with diameter transition. It’s ideal for distributing compressed air from a single source to dual outputs with unmatched sealing reliability.
With its push-to-connect design, the fitting offers effortless installation—just insert the tubes and secure. The compact structure is optimized for high-efficiency, space-constrained air systems.

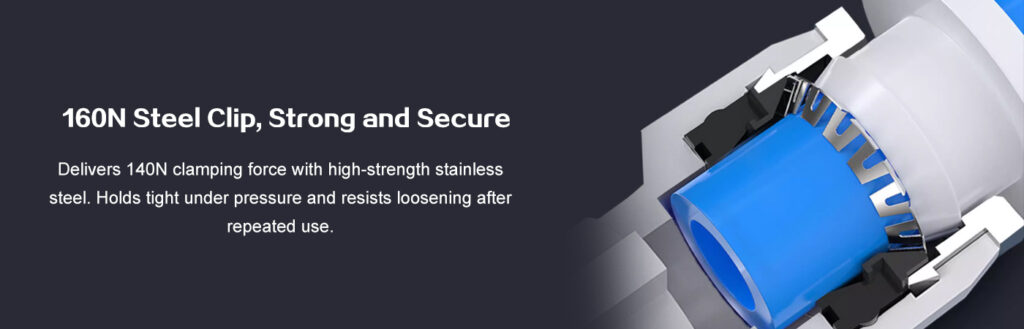

A high-strength 160N stainless steel clip ensures the tubes stay locked under pressure, while the NBR rubber seal maintains long-term airtight performance—even after frequent tube changes.
Engineered for both PU and nylon tubes, this fitting is especially suited for industrial setups requiring mixed-diameter branching with high leak resistance.
Pressure-tested to maintain 1.0 MPa continuously and withstand up to 1.4 MPa at peak, it’s built for demanding, high-pressure pneumatic environments.
| Parameter | Value |
|---|---|
| Product Name | PW Diff.Diam.Union Y Pneumatic Fitting |
| Fitting Type | Y-Shape Push-to-Connect for Mixed Diameters |
| Compatible Tubing | PU Tube / Nylon Tube |
| Tube Size Compatibility | Two Different Outer Diameters (Y-Split Design) |
| Seal Material | NBR Rubber O-Ring |
| Clamp Material | Stainless Steel (160N Clamping Force) |
| Working Pressure | Up to 1.0 MPa (10 kgf/cm²) |
| Max Holding Pressure | 1.4 MPa (14 kgf/cm²) |
| Operating Temperature | 0~60°C |
| Application | Mixed-Diameter Dual-Branch Air Distribution |
