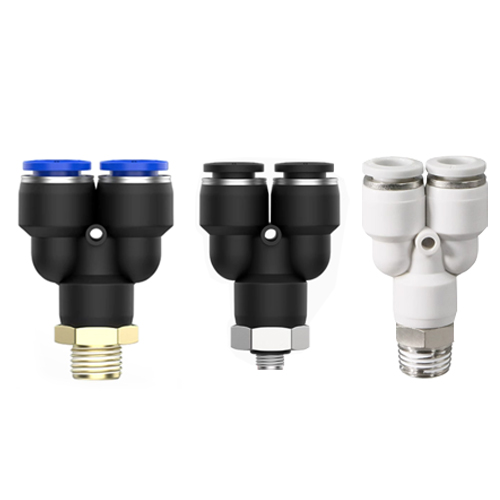

PX Branch Y Pneumatic Fitting
About PX Branch Y Pneumatic Fitting
The PX Branch Y Pneumatic Fitting is a high-performance Y-type connector engineered for demanding pneumatic systems. It features a durable high-strength body with smooth, burr-free surfaces and supports pressures up to 14 kgf/cm² without disconnection. Equipped with a 140N stainless steel snap ring and an anti-vibration NBR rubber seal, it delivers excellent grip and long-lasting, leak-proof performance. The fitting allows 360° tube rotation after installation, adapts to tight layouts, and supports repeated insertions—up to 7× the durability of standard fittings. Achieving >99.99% sealing with a simple push-in action, it’s ideal for fast, secure, and flexible air line connections.
| Attribute | Value |
|---|---|
| Product Name | PX Branch Y Pneumatic Fitting |
| Connection Type | Push-in + Male Thread (Y-shape side branch) |
| Working Pressure | Up to 1.4 Mpa (14 kgf/cm²) |
| Seal Material | NBR Rubber – deformation resistant, shock-absorbing |
| Clip Material | Stainless Steel – 140N clamping force |
| Body Material | High-density polymer + Brass (1.5g/cm³ density, smooth finish) |
| Operating Temperature | 0°C ~ 60°C |
| Installation | Push-to-connect, tool-free, quick installation |
| Tube Rotation | 360° rotatable after connection |
| Durability | Up to 7× insert/remove cycles under high stress (vs. 3× regular types) |
