Picture a mechanical designer staring at a CAD screen. The task seems simple: take a cardboard box moving down a conveyor belt and flip it upside down (a 180-degree turn) for the next assembly station.
The designer’s first instinct? Grab a standard linear pneumatic cylinder, design a custom hinge, machine a metal crank, and build a complex linkage system to force that linear push into a rotational flip.
The result is a bulky, expensive, and high-maintenance “Frankenstein” mechanism.
In industrial automation, choosing the right pneumatic motion is the foundation of good machine design. While Linear Cylinders are the muscles of your machine, Rotary Actuators are the wrists. In this guide, we will break down the mechanics, expose the linkage trap, and show you exactly how to specify the right actuator for your OEM project.
What is a Linear Pneumatic Cylinder? (The Muscle)
A Linear Pneumatic Cylinder does exactly what its name implies: it moves in a straight line. When compressed air enters the cylinder barrel, it forces the internal piston to extend or retract the rod.
- Core Motion: Push, Pull, Lift, and Press.
- The Mechanics: They are incredibly efficient at transferring raw force from Point A to Point B. Standardized profiles, like the ISO 15552 cylinder, make them universally interchangeable and highly cost-effective.
- Best Applications: Pushing products off a sorting line, lifting heavy safety doors, or pressing bearings into a housing. If the payload needs to travel in a straight line, the linear cylinder is your undisputed champion.
What is a Pneumatic Rotary Actuator? (The Wrist)
A Rotary Actuator (or rotary cylinder) converts pneumatic pressure directly into oscillating rotational motion, without the need for external moving parts.
- Core Motion: Turn, Flip, Twist, and Index.
- The Mechanics: The most common industrial design is the Rack and Pinion. Inside the compact aluminum housing, a linear piston drives a toothed rack, which spins a central gear (the pinion). This outputs pure, seamless rotational movement—typically in precise 90°, 180°, or 270° increments.
- Best Applications: Flipping parts for inspection, operating large butterfly valves, or orienting components for robotic pick-and-place systems.

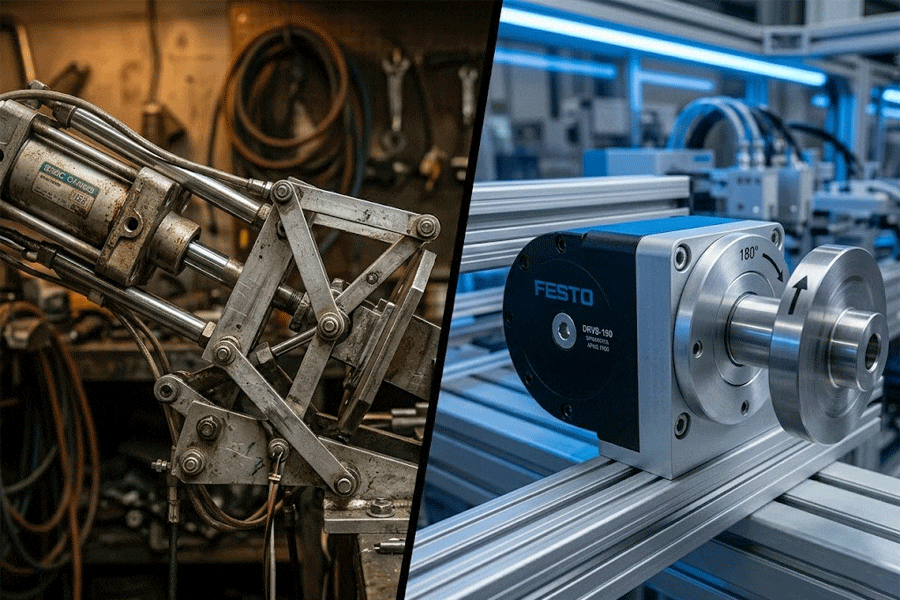

The Trap: Why You Shouldn’t Use Linear Cylinders for Rotary Motion
This is where many junior engineers make a costly mistake. Using a linear cylinder attached to a custom-machined crank/linkage to achieve rotation introduces three massive engineering headaches:
- Mechanical Backlash: Every hinge and pin in a custom linkage has a tiny amount of clearance. When the cylinder changes direction, these clearances add up, creating “backlash.” Your 180-degree flip might end up being 177 degrees one cycle, and 182 degrees the next.
- Space Consumption: Linkages require a large physical footprint to accommodate the swing radius of the crank. In modern automation, space is money.
- High Machining Costs: Designing and milling custom metal pivot points costs significantly more than buying a ready-made rotary actuator.
The Solution: A Rack and Pinion Rotary Actuator eliminates external linkages. It provides zero-backlash, pure torque in an incredibly compact, plug-and-play package.
Sizing Your Actuator: Force vs. Torque
To properly size your pneumatic components, you must use the correct physics calculations.
- Sizing Linear Cylinders (Force): You are calculating Thrust. The formula is $F=P \times A$ (Force equals Pressure multiplied by the Piston Area). You just need to know the weight of the load and the available air pressure.
- Sizing Rotary Actuators (Torque): You are calculating Torque ($\tau = F \times r$). You must account for the weight of the load and how far its center of mass is from the pivot point (the moment arm).
Pro-Tip: The Rotational Inertia Warning When you flip a heavy payload 180 degrees, it generates massive rotational inertia. You cannot let the internal gears of the rotary actuator absorb that impact when it stops! Always install external hydraulic shock absorbers to safely decelerate the load before it hits the end of its rotation.
Conclusion: Simplify Your Machine Design
Stop designing complex, wear-prone linkages. Let linear cylinders handle the heavy pushing, and let rotary actuators handle the precise flipping. By matching the correct pneumatic component to the intended motion, you will build faster, smaller, and more reliable machines.
