S3 Series Mechanical Valves
S3 Series Mechanical Valves – Compact & Reliable Pneumatic Manual Valves
The S3 Series Mechanical Valves are designed to deliver precise manual control in pneumatic circuits where space and response time are critical. With their compact size and lightweight aluminum body, these valves are ideal for panel mounting and space-limited machinery applications.

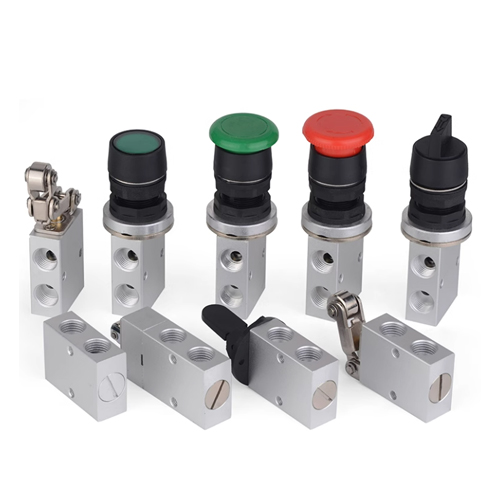

Available in 3/2 and 5/2-way configurations, S3 Series valves support a variety of actuators including roller lever, push button, toggle switch, and rotary knob. The ergonomic designs ensure smooth actuation and reduced operator fatigue.
Built to withstand industrial environments, these valves are commonly used in assembly lines, inspection equipment, and machine tool control panels. S3 valves combine compact structure, durable components, and flexible configuration options—offering maximum performance in minimal space.
| Parameter | Specification |
|---|---|
| Product Name | S3 Series Mechanical Valve |

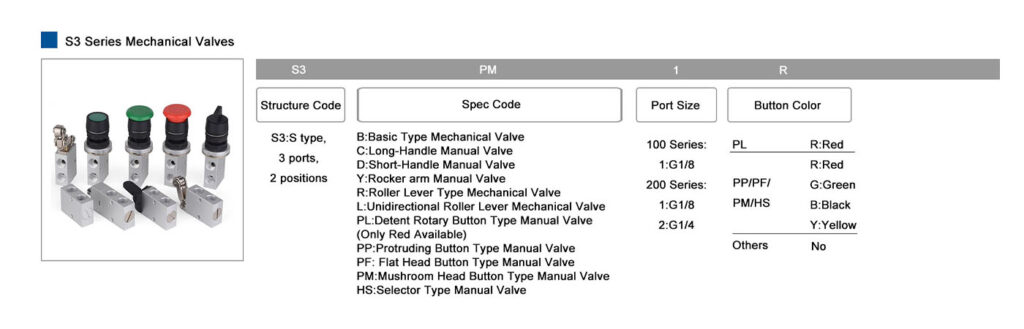

| Valve Type | 3/2 or 5/2 way |
| Actuator Options | Push button, toggle, rotary, roller lever |
| Body Material | Anodized aluminum |
| Port Size | G1/8″, G1/4″ |
| Working Pressure | 0.15 – 0.8 MPa |
| Operating Temperature | 0°C to 60°C |
| Mounting | Panel or body mount |
| Applications | Compact machinery, testing systems, operator panels |
Want to explore more CG pneumatic valve products?Click here: Pneumatic Valve to learn more.
