SDA Series compact cylinder
About SDA Series compact cylinder
The SDA Series Compact Cylinder by CG Pneumatic delivers exceptional force output in a compact design, making it ideal for applications with limited space. Engineered with high-performance seals and durable materials, it offers smooth, reliable actuation for material handling, assembly lines, and robotics. This series is perfect for systems that require powerful yet compact pneumatic solutions without compromising efficiency or durability.
| Parameter | Specification |
|---|---|
| Bore Size | 16mm, 20mm, 25mm, 32mm |
| Stroke Length | 5mm to 100mm (customizable) |
| Operating Pressure | 0.1–1.0 MPa |
| Operating Temperature Range | -10°C to +70°C |
| Cushion Type | Rubber cushion |
| Port Size | M5, 1/8″, 1/4″ |

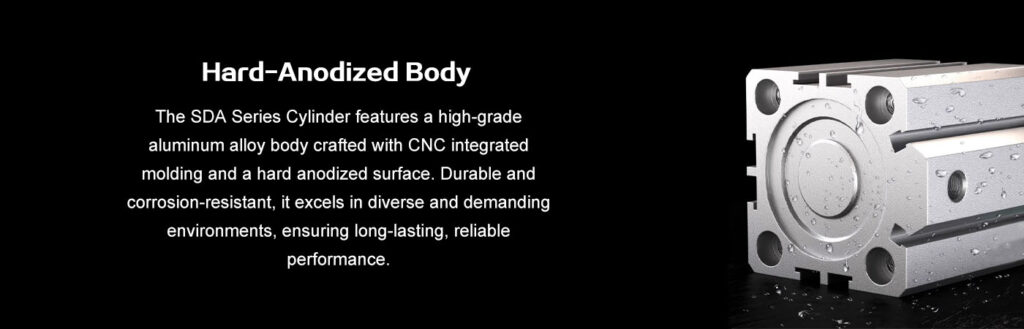

| Body Material | Aluminum Alloy |
| Piston Rod Material | Stainless Steel |
| Mounting Type | Foot, Flange, Double Clevis |
| Acting Type | Double Acting |
