SL EIbow L Pneumatic Fitting
About SL EIbow L Pneumatic Fitting

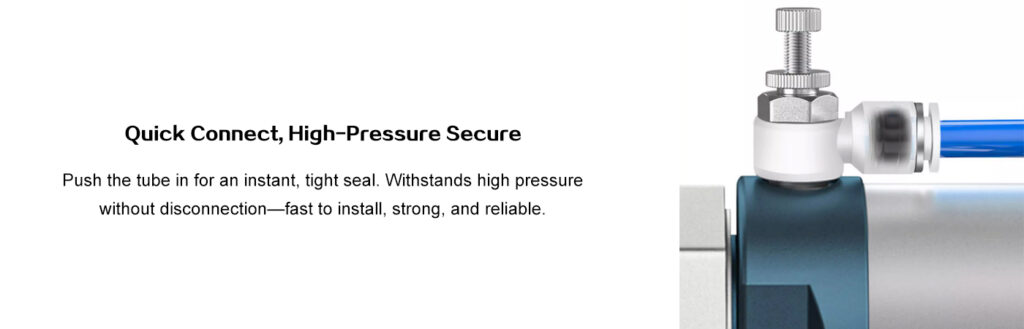

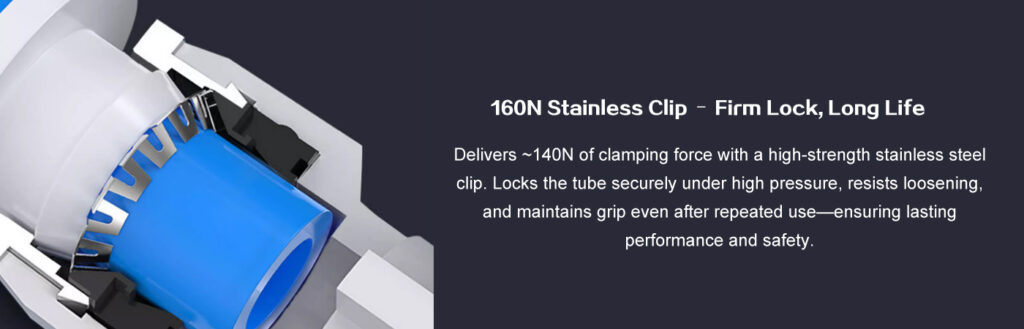

The SL Elbow L Pneumatic Fitting combines precise flow control with a quick-connect elbow design, ideal for pneumatic cylinders and air systems. Featuring an upgraded NBR rubber seal, it reduces insertion force by ≈30% and offers superior resistance to deformation, pressure fluctuation, and vibration. The high-strength stainless steel clip provides up to 140N of clamping force, ensuring leak-free, high-pressure operation up to 1.2 Mpa. The cap design allows 360° tube rotation and tight bending without leaks. R-threaded ports deliver >99.9% sealing performance even without PTFE tape, outperforming standard G threads. This compact, easy-to-install fitting is built for efficiency, durability, and long-term use.
| Attribute | Value |
|---|---|
| Product Name | SL Elbow L Pneumatic Fitting (Throttle Valve Type) |
| Connection Type | Male R-thread + Push-in Tube |
| Seal Material | NBR Rubber – low friction (≈0.67), anti-deformation |
| Insertion Force | ≈30% lower than traditional fittings |
| Clip Material | Stainless Steel – 140N grip, high durability |
| Max Pressure | Up to 1.2 Mpa |
| Cap Design | 360° rotatable, leak-free even at tight bends |
| Thread Type | R-thread (tapered, 55°) – >99.9% seal without PTFE tape |
| Applicable Tubing | PU / Nylon Tubes |
| Installation | Push-to-connect, tool-free, quick assembly |
