VF5 Series Solenoid Valve
High Flow, Heavy Duty – VF5 Series Solenoid Valve

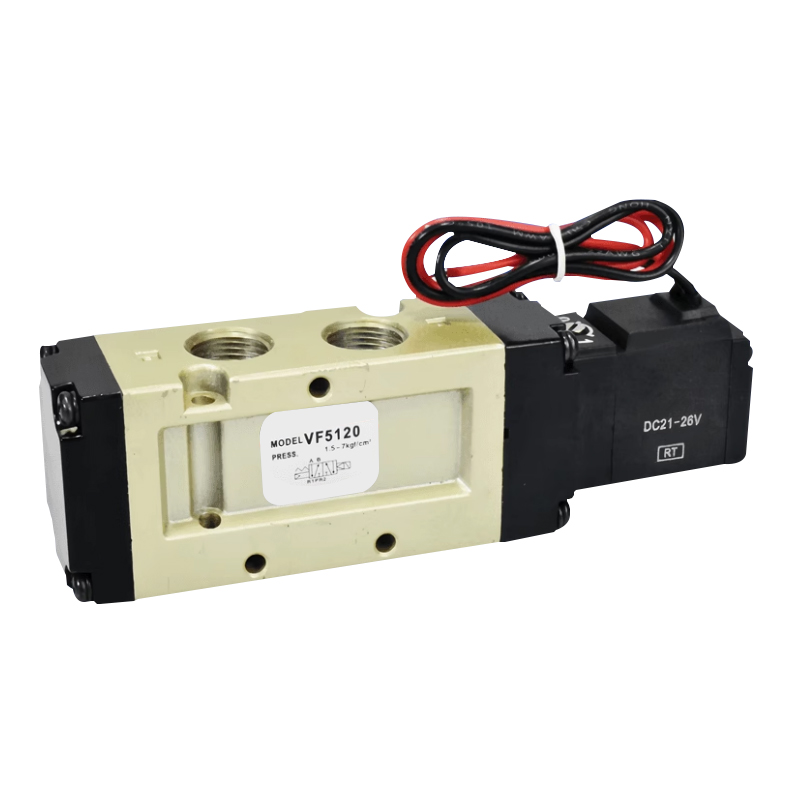

The CG Pneumatic VF5 Series Solenoid Valve is a powerful 5/2 way directional valve designed for high-flow, high-pressure pneumatic systems. The VF5120 model features a large flow body, integrated pilot control, and reliable performance under demanding conditions.
With its durable brass and aluminum construction, this valve is engineered to withstand continuous operation in heavy-duty industrial environments such as metallurgy, textile, and packaging lines. The integrated solenoid coil, IP65-rated housing, and standard wiring interface make it easy to install and maintain.
If you’re looking for a rugged, efficient solenoid valve solution with maximum airflow capacity, the VF5 Series is your ideal choice.
| Parameter | Specification |
|---|---|
| Model | VF5120 (VF5 Series) |
| Valve Type | 5/2 Way, 2-Position |
| Coil Voltage | DC21–26V |
| Power Connection | Wire leads (2-pin) |
| Operating Pressure | 1.5 – 7 kgf/cm² |
| Body Material | Brass + aluminum alloy |
| Port Size | PT3/8″, PT1/2″ (customizable) |
| Duty Cycle | 100%ED |
| Protection Level | IP65 |
| Certification | CE |
| Applicable Medium | Filtered air |
| Mounting Type | Inline, base-mount |
| Applications | High-flow automation, textile, metallurgy |
| Special Feature | Compatible with SMC VF5120 replacement |
